EZChem Pilot Plant Reactor

Home > Product > Glass reactor > EZChem Pilot Plant Reactor >

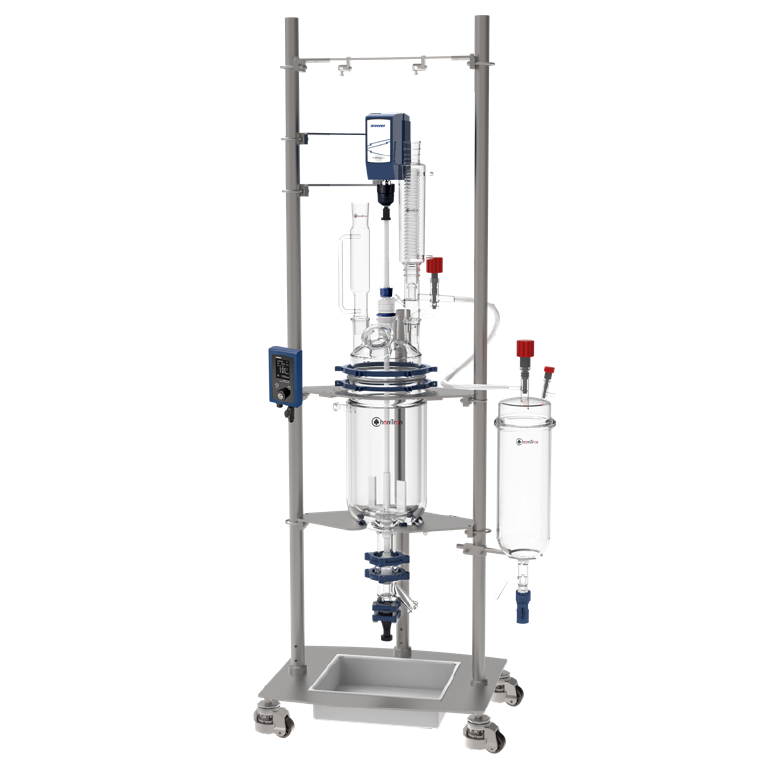

50L Process reactor, cylindrical, jacketed

Reaction volume:50L;Temperature range:-60~200℃

Model: WRS-1503-04

Order NO.: WRS-1503-04

1528

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

EZChem pilot plant reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi channel regulating valve and distillation unit. The unique design of the smart supporting structure and clamping system allows for quick and easy installation/removal of glassware.

1. Select the base system dependent on desired working volume.
2. Select the motor that best suits your application.
3. Select the components and accessories which best fit your application.

50L complete standard pilot reactor

Part number Description Description
WRS-1503-041 50L Process System Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-041M 50L Process System Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-042 50L Process System with distillation unit Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-042M 50L Process System with distillation unit Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF


Specifications

Reaction volume 50L
Flange of vessel DN300
Bore diameter of bottom valve 0-25mm
Reactor lid DN300, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )
Total openings on the lid 8
Material of reaction vessel and lid High quality borosilicate glass
Temperature range -60~200℃
Vessel pressure Atmospheric pressure and vacuum
Jacket pressure up to 0.5bar
Material of wet part Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket DN25
Stirring speed Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens
Diameter/length of stirring Rod Ø28mm / 1600mm
Blade diameter Anchor style stir paddle
Length of condenser 400mm
Volume of collection flask 10L
Volume of liquid funnel 5L
Temperature sensor Ø6mm×1200mm
Stand Dimensions ( W x D x H) Approx.  800x 660x 2650mm
