Bench Top Reactor

Home > Product > Glass reactor > Bench Top Reactor >

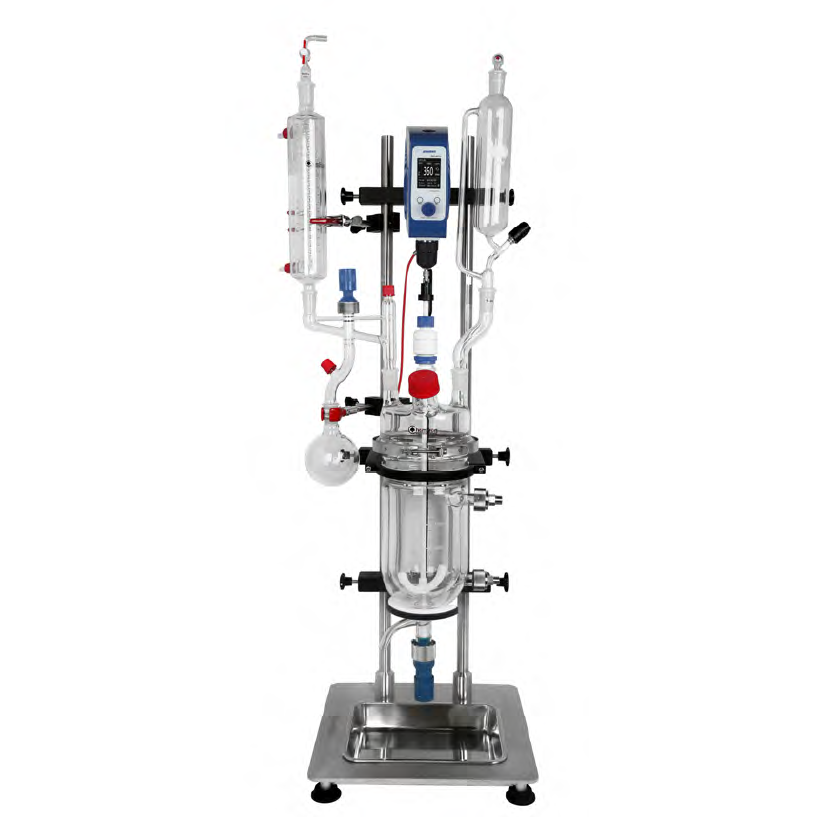

Bench top reactor, all-in-one, jacketed, 2000ml

Max. reaction volume recommendation:2000ml

Model: WRS-1501-05

Order NO.: WRS-1501-05

2013

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

NEW Bench top Reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi channel regulating valve. The unique design of the Bench top Reactor support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most fume hood.

2000ml complete bench top Reactor

Part number Description
WRS-1501-051 Complete with Glassware & Stand, and Digital Overhead Stirrer WOHS-15 Pro
WRS-1501-052 Complete with Glassware, Stand, and High Torque Overhead Stirrer WOHS-400 Pro
WRS-1501-051M Complete with Glassware & Stand, Multi channel regulating valve and Digital Overhead Stirrer WOHS-15 Pro
WRS-1501-052M Complete with Glassware, Stand, Multi channel regulating valve and High Torque Overhead Stirrer WOHS-400 Pro


Specifications

Max. reaction volume recommendation 2000mL
Flange DN150
Bore diameter of bottom valve 0-10mm
Reactor lid CN:24/40, SN:24/40(3), 45° -GL45
Material of reaction vessel and lid High quality borosilicate glass
Temperature range -60~200℃
Vessel pressure suitable for atmospheric and vacuum reaction
Jacket pressure up to 0.5bar
Material of wet part Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket DN15
Stirring speed Available at 500 RPM for long-term operation, 800 RPM for short-term operation
If high-speed mixing applications are required, please consult your Wiggens
Diameter/length of stirring Rod Ø10mm / 550mm
Blade diameter 100mm(Anchor style stir paddle)
Length of condenser 300mm
Volume of collection flask 1000mL
Volume of liquid funnel 500mL
Distance between discharge port and spill tray 140mm
Weight 33kg
Stand Dimensions ( W x D x H) Approx.  530x 440x1280mm

Accessories
