Diaphragm Vacuum Pump

Home > Product > Vacuum Pump / Pressure Pump > Diaphragm Vacuum Pump >

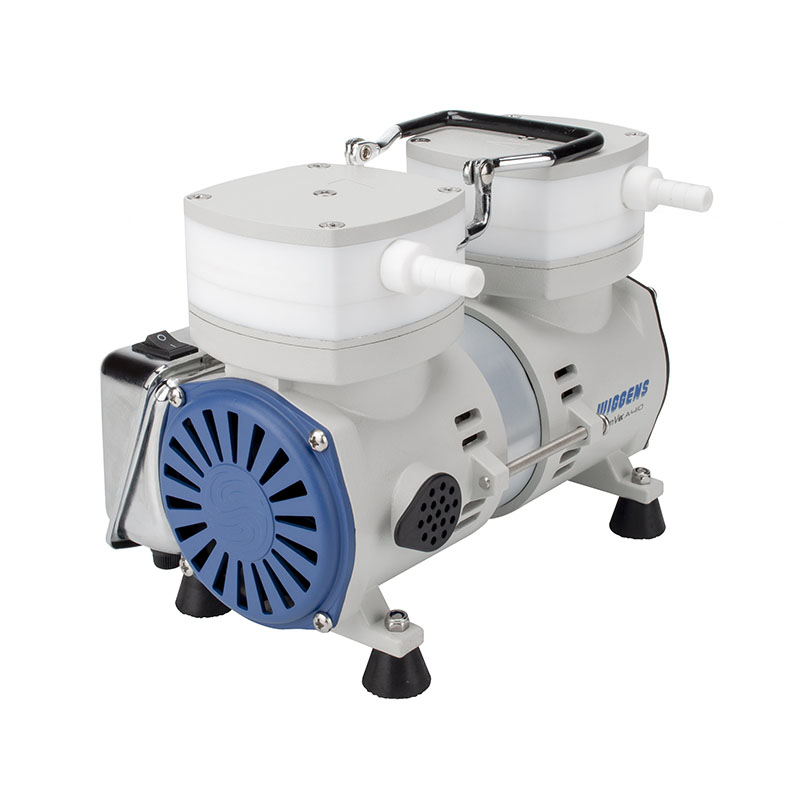

Chemical Resistant Diaphragm Pumps

Powe :220V/50Hz ,Max. powe :95 W,Max. Flow Rate :25L/min ,Outlet :10mm

Model: A410

Order NO.: 170410

4799

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

> Chemvak A series are chemical resistant diaphragm vacuum pumps which can be used in the chemical, pharmaceutical, petrochemical and other industries, such as suction filtration, vacuum distillation, rotary evaporator, vacuum concentration, centrifugal concentration, solid phase extraction and so on.
> A series pumps can be widely used for hard acidic, basic and solvent vapors by utilizing corrosion proof PTFE on all the wetted surfaces.The vacuum chamber and the drive chamber are separated and sealed, ensuring a longer working life of mechanical components
> Chemvak A series pumps are driven by diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
> Driven direct by motor with no additional belt-driven transmission; the quality vibration-proof assembly makes Chemvak A series run at the lowest noise level among all other equivalent pumps.
> Cost-effective, reliable, unique structural design, noise less than 50dB.
> A variety of models are available to meet the various needs of the laboratory, with a minimum vacuum of up to 8 mbar.
> Every motor of Chemvak A series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

Features
> No pollution when working
> Overheat protection and power insurance
> Chemical resistant design
> Suitable for corrosive gases and steam media
> Environmentally friendly design
> Strong tightness

Specifications

Model / Specifications

A410

Order No.

170410

Flow rate [m3 /h] at atm. pressure

1.5

Flow rate [L/min] at atm. pressure

25

Ultimate vacuum [mbar abs.]

13

Max. Power P [W]

95

Max. current [A]

0.6

Motor speed [rpm]

1450

Pump head

Double stage

Hose connections [mm]

10

Noise [dB]

50

Dimensions W x D x H [mm]

230×155×173

Weight [kg]

4.5

Power supply

220V/50Hz

Accessories
