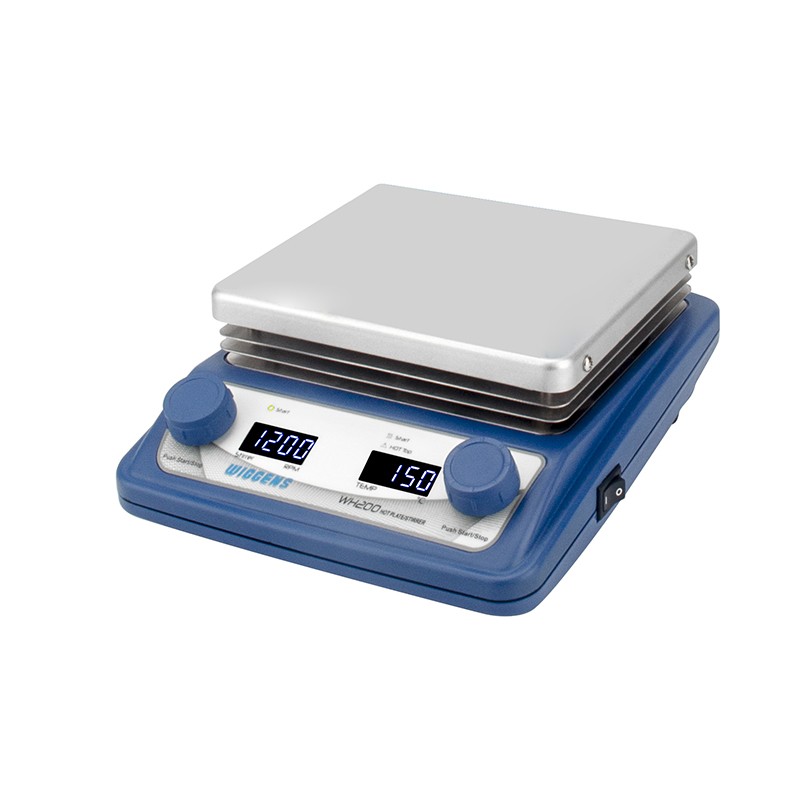

Digital Hot Plate / Stirrer

Home > Product > Hotplate Stirrer / Stirrer > Digital Hot Plate / Stirrer >

Digital Hot Plate / Stirrer

Maximum temperature setting:250℃

Model: WH200

Order NO.: 400302

4617

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

> Our laboratory hotplates / stirrers are developed and produced according to high international quality standards.
> Advanced microprocessor controlling system guarantees the reliability and temperature stability.
> Bright and clear LED digital display and setting for the working temperature and stirring speed.
> Memory function for stirring speed and temperature setting, convenient for experiments with fixed conditions.
> Liquid drainage above the control board to prevent liquids from accessing the system.

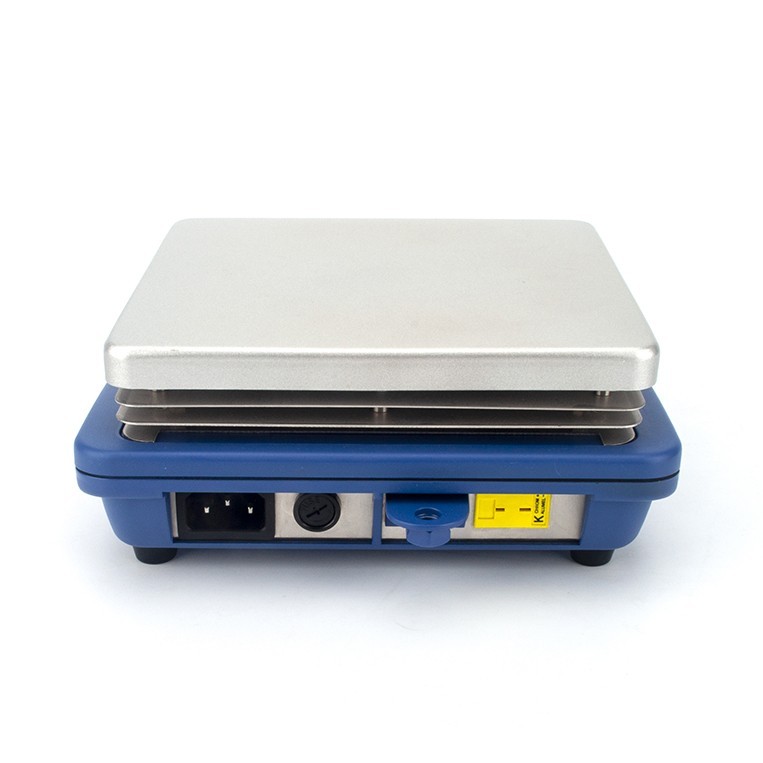

> Direct connection for thermocouple sensor for convenient solution temperature control.
> WH200 and WH210 are suitable for general laboratory application.
> When the temperature of the top plate is above 60℃ , hot-top indicator will light up for the user's safety protection.

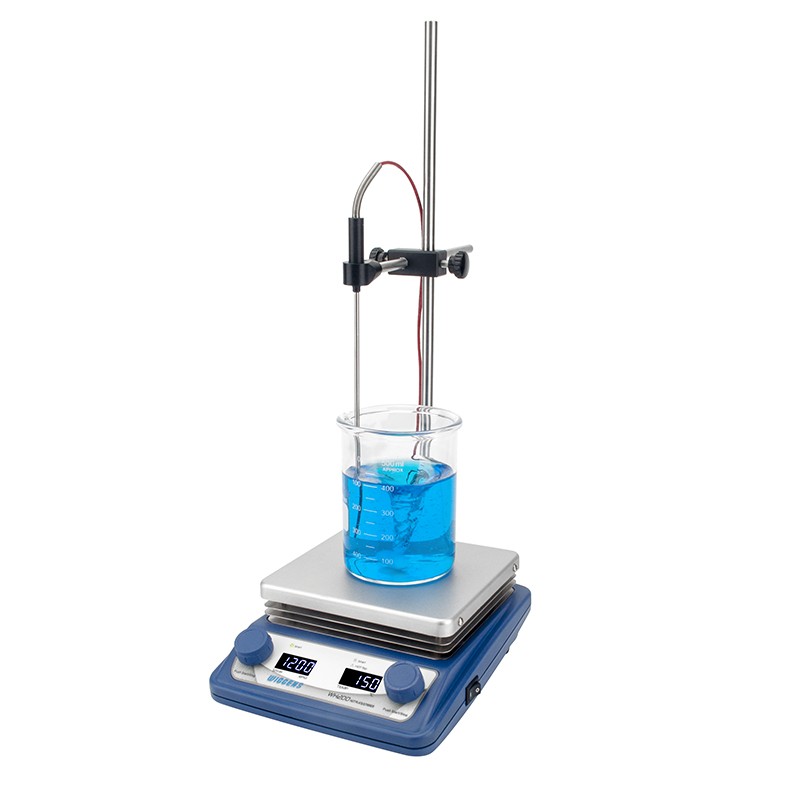

Standard thermocouple sensor
Accurate solution temperature within ±1℃ in general range.

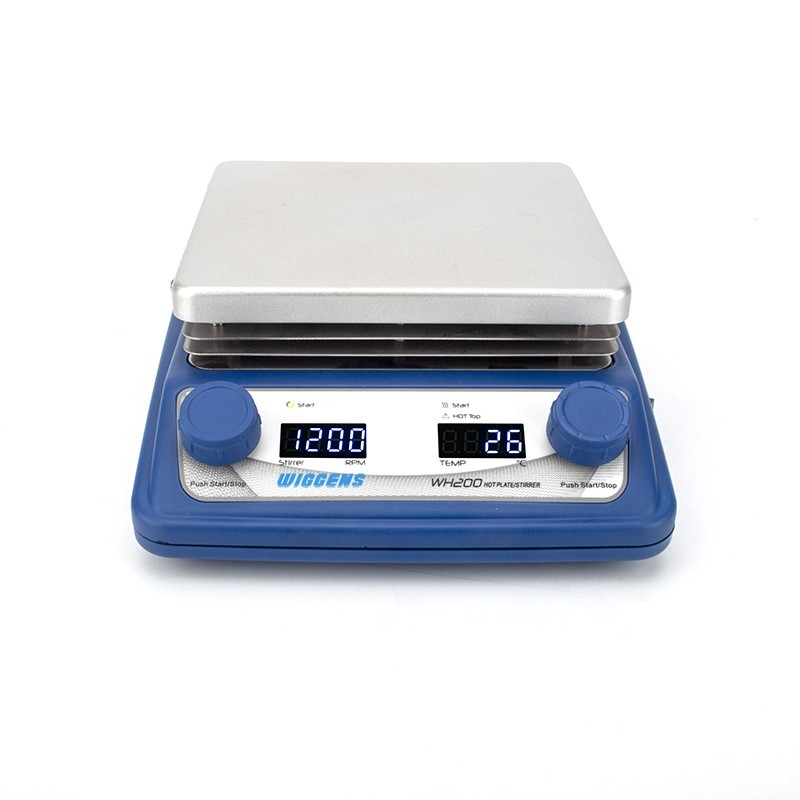

Temperature and Speed display
WH200 and WH210 display temperature and speed at the same time, and remember the last working parameters.

Safety protection
Flashing high temperature indicator, warning for hurt by touch.

Liquid drainage
Above the control board Avoid the solution splashing on the touch board.

Top plate material
WH200 with aluminum plate, WH210 with SS304 plate. WH210 SS304 coated with ceramic.

Specifications

Model WH200
Order No. 400302
Maximum temperature setting [℃ ] 250
Maximum temperature setting with E-sensor [℃ ] 250
Safety temperature [℃ ] 280
Temperature stability with E-sensor [℃ ] ±2
Heat output [W] 300
External temperature sensor Thermocouple
PID parameter 1 set
Speed setting range [rpm] 100~1500
Temperature and Speed display LED display
Temperature and Speed setting Turning knob
Top plate material Aluminium alloy
Top plate dimensions [mm] 165 x150
Dimensions W x D x H [mm] 230X200X100
Weight [kg] 1.5
Power supply 220V/50Hz

* Measured with 500ml water at 80 ℃
Standard package includes: hot plate / stirrer, thermocouple sensor ( Order No. 600.170.1) with holder and clamp, stirrer bar ( Order No. 1.230.8)

Accessories
