Hot Plates

Home > Products > Stirrer / Hotplate Stirrer > Hot Plates >

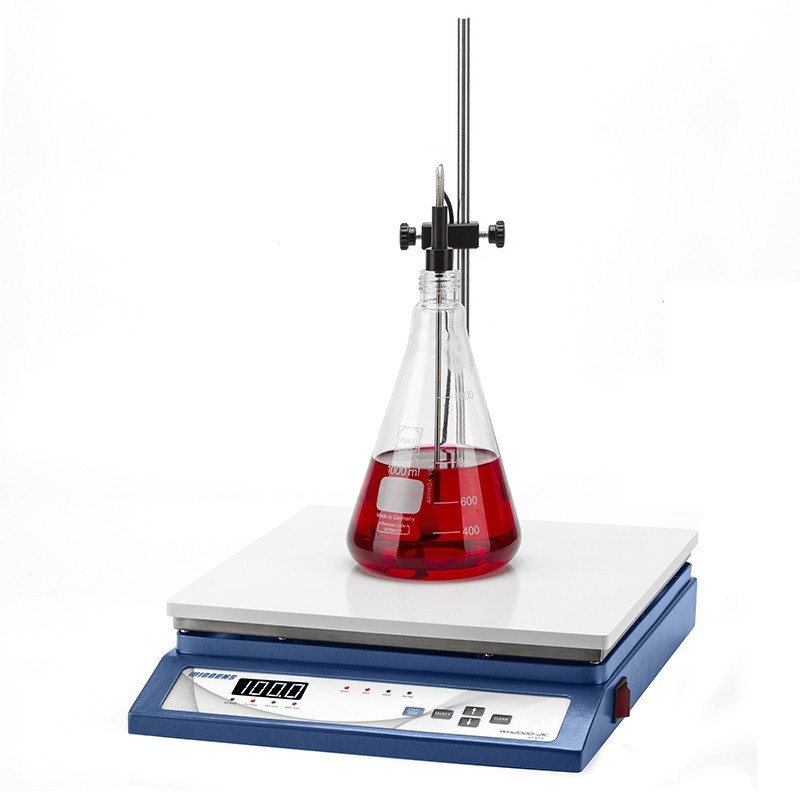

Digital Hot Plate

Temperature range in 50~300℃,Power 1000W

Model: WH200D-3K

Order NO.: 400112

742

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

*  PID temperature control technology for accurate and reliable results
*  Suitable for complicated temperature control requirements
*  Bright LED screen can display both set value and actual temperature
*  Convenient temperature setting via on-touch control
*  Timer function for automatic heating up to 100 hours
*  Alarm signal output which can be applied to stop the operation of the hot plate and other connected devices
*  External Pt100 temperature sensor connection for direct and precise control of the actual temperature

Specifications

Model

WH200D-3K

Display Mode

LED

Temperature Stability (ºC)

±2

Top Plate Material

Aluminum coated with ceramic

Temperature range in (ºC)

50~300

Solvent Temperature (PT100 sensor) in (ºC) 40~300

Power (W)

1500

Heating Plate Dimensions (W x L in mm)

400 x 300

Dimensions (W x L in mm)

470 x 410 x 70

Order No.

400112

Accessories
