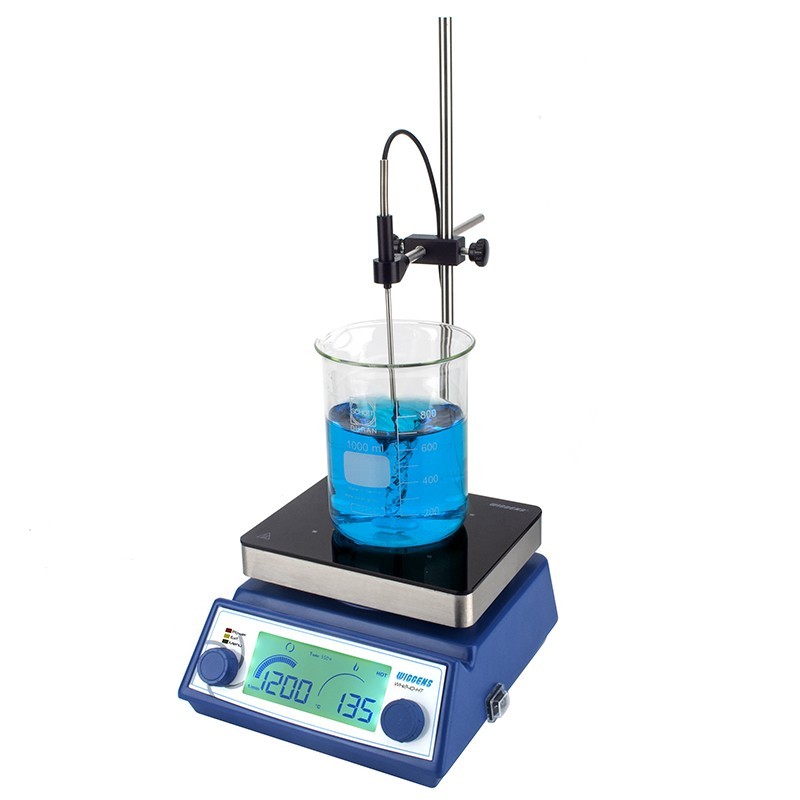

Digital Hot Plates / Stirrers

Top Plate Temperature Range:Ambient Temperature-450℃,Rotating Speed 100-1200rpm,Temperature Stability ±2℃

Model: WH240-HT

Order NO.: 400401

6309

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

* Advanced microprocessor controlling system guarantees the reliability and temperature stability
* Bright and clear LCD or LED digital display and setting for the working temperature, stirring speed, working time, and safety temperature
* Memory function for stirring speed and setting temperature, convenient for experiments with fixed conditions
* Liquid drainage above the control board to prevent liquids from accessing the system
* Direct connection for Pt100 temperature sensor for convenient solution temperature control
* Sealed outer shell and isolated critical parts design for enhanced longevity even in a harsh laboratory environment
* When the temperature of the top plate is above 60℃ , hot-top indicator will light up for the user’s safety protection

Safe Heating and Mixing
Have you ever heard of hotplates with
fast heat-up times and chemical
resistance?


HT serial - Advantages and Applications
* With the new infrared technology, is a high-temperature type hot plate stirrer with very good heating efficiency as well as great stability
* Chemical resistant ceramic glass plate with excellent anti-thermal-shock characteristics, robust and easy to clean with an attractive_appearance as well as practical reliability
* Very quick obtainment of desired high media temperature, which low temperature models can not reach
* High safety protection: When exceeding the safety range of the hot top ( 50 ℃ more than the setting temperature) or solution (adjustable for WH240-HT), the heating can be shutoff immediately and automatically for the safety protection
* Two sets of PID parameters (WH240-HT) suitable for quick heating of large volume sample or accurate control of small amount sample

Specifications

Model

WH240-HT

Display Mode

LCD

Max. Set Temperature ( top plate) (℃ )

450

Max. Set Temperature (with Pt100 sensor)(℃ )

300

Temperature Stability (Pt100sensor)( )

±2

Safety Temp. ( )

50~500 adjustable

Stirring Speed Range (rpm)

100~1200

Heating Capacity (W)

800

Max. Capacity (L)H2O

20

Top Plate Material

 Ceramic Glass

Timermin

1 - 1999 / continuous

PID Parameters

2 set of PID

Interface

USB

Top Plate Dimensionsmm

150x190

Dimensions (mm)

225X215X115

High Temperature Protection T( )

10~50 adjustable

Order No.

400401

Accessories
