Chemical Resistant Diaphragm Pump

Ultimate vacuum:< 8mbar,Flow rate:75L/min

Model: C920ZF

Order NO.: 169920B

2041

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Chemical resistant diaphragm pumps are ideally suited for pumping aggressive gases and vapors in a vacuum range down to 1mbar. and pumping speed up to 95L/min
The variable-frequency pump needs to be connected with the variable-frequency controller to control the vacuum by adjusting the speed of the motor, which is especially suitable for the vacuum control of large-capacity system. It not only ensures a faster pumping speed, but also obtains a stable vacuum.

Features
> All wetted parts are made of chemical resistant materials
> Variable frequency motor for fast pumping speed
> Low noise
> Overheat protection
> Vacuum can be controlled by manual valve, vacuum controller or variable frequency controller
> Easy and convenient for maintenance

Specifications

Model / Specifications

C920ZF

Order No. (W/O frequency controller)

169920B

Order No. (W/ frequency controller)

169921B

Flow rate [m3 /h] at atm. pressure

4.5

Flow rate [L/min] at atm. pressure 75

Ultimate vacuum [mbar abs.]

<8

Max. Power P [W]

370

Motor speed [rpm]

0~1380/0~1680 1)

Pump head

Double stage

Hose connections [mm]

10

Noise [dB]

50

Dimensions W x D x H [mm]

440×270×240

Weight [kg]

21.5

Variable frequency vacuum controller

Order separately

Power supply

200 - 240V, 50/60Hz

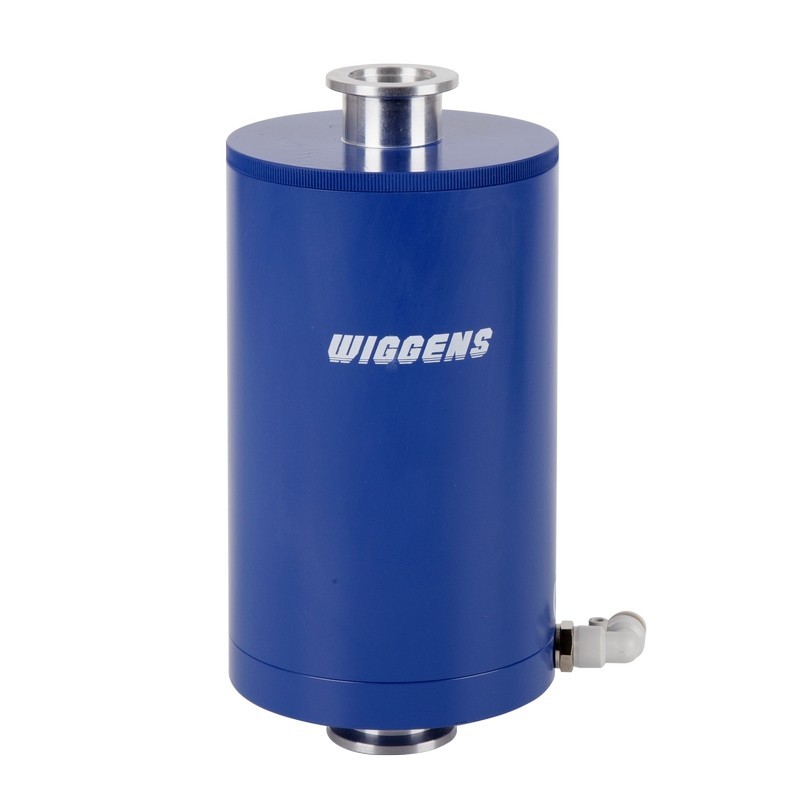

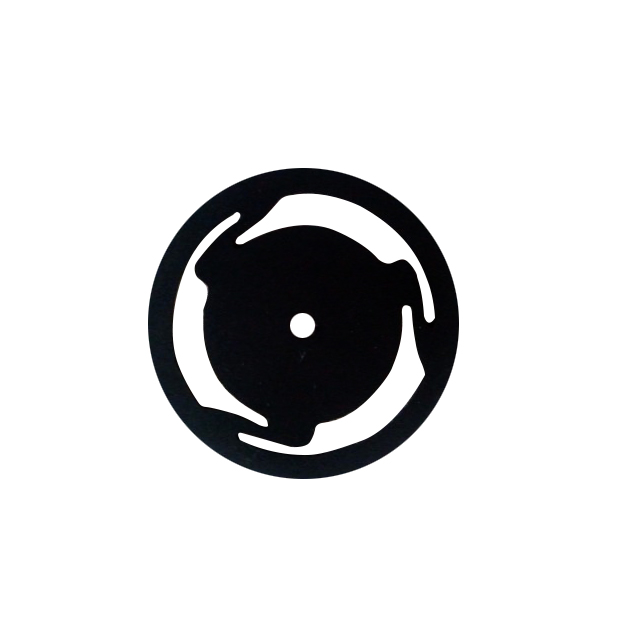

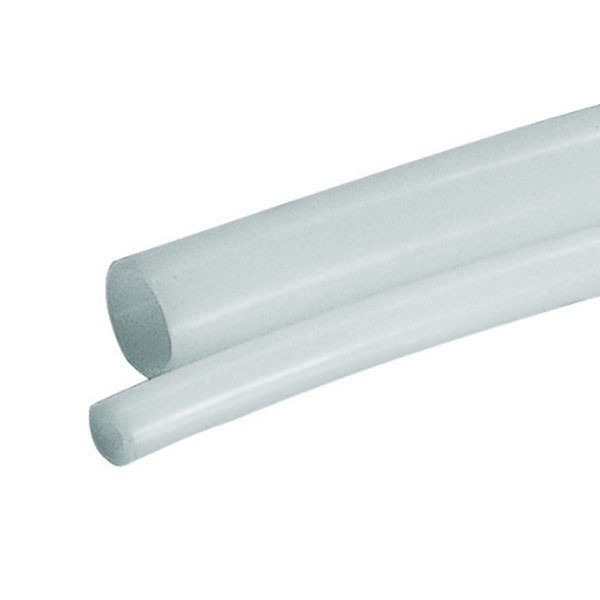

Accessories
