Remotely Controllable High Torque / High Speed Stirrer

Speed Range (rpm)： 60~1200(I)/ 1201~6000(II)

Model: WOHS-20H Pro F

Order NO.: W3041060F

123

Specific parameters will be adjusted according to product upgrades, without notice.

Ideally perform your professional stirring tasks requiring high functionality, safety, and longevity. Prestige

touch TFT controller.

Features

> Low vibration, noise-free operation.

> Brushless DC motor, strong and stable operation.

> High torque stirring for high viscosity samples.

> Accurate speed control.

> Microprogram control to prevent liquid splashing.

When used with a reactor or on other special occasions, it is necessary to operate the stirrer at a

certain distance.

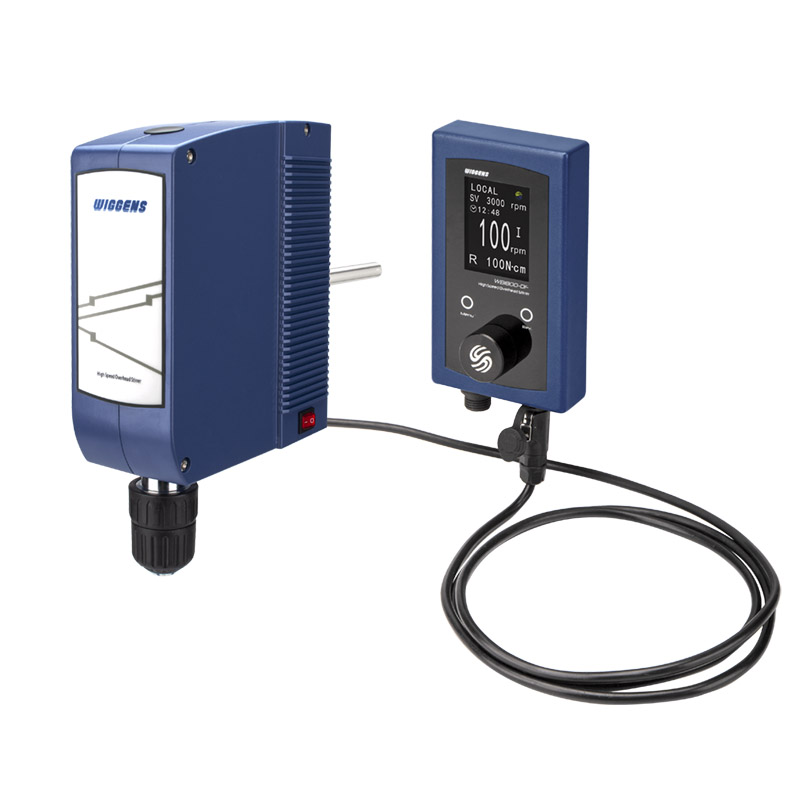

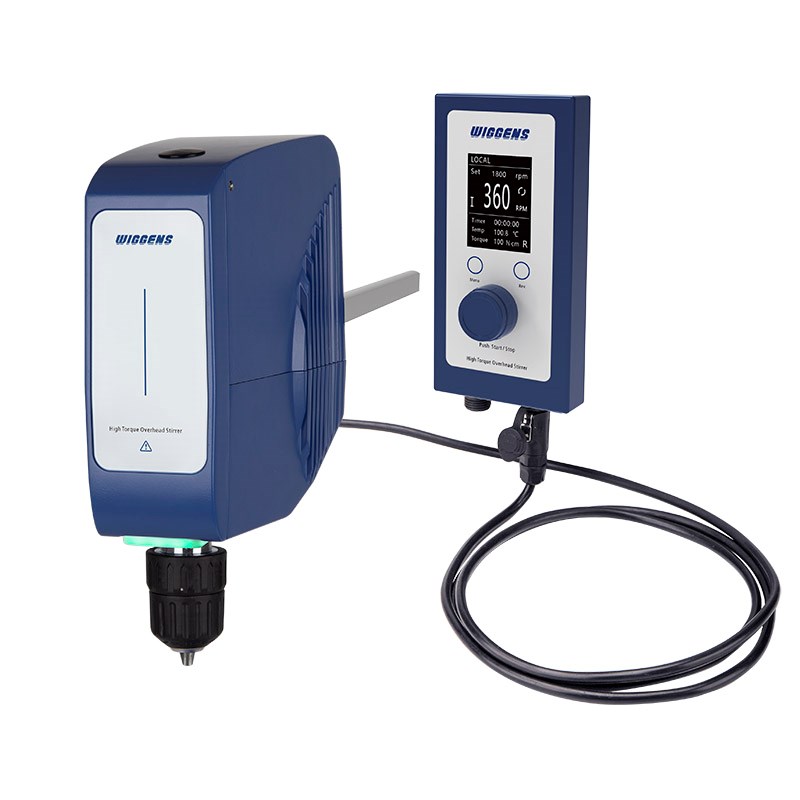

WIGGENS newly designed remotely controllable overhead stirrer combines the stirring drive unit

with the control unit split assembly, the cable connection allows easy and safe operation of the

stirrer at a distance.

> Handheld controller 150mm long, 100mm wide with a 2m wire.

> The connection of the handheld controller to the stirrer and the connection of the wire to the

operation panel are all push-in aviation plugs.

> The handheld controller can display stirring speed, torque, stirring mode, etc.

The handheld controller

> Simple operation, TFT touchscreen control.

> When handling special samples, the stirrer can be controlled remotely without opening the fume

hood and biosafety cabinet.

Security

> Aluminum housing, which can effectively absorb or dissipate the heat generated inside.

> Power adapter and main unit are separated to protect the user from the risk of electric shock.

Specifications

Model	WOHS-20H Pro F
Order No	W3041060F
Speed Range (rpm)	60~1200(I)
Speed Range (rpm)	1201~6000(II)
Torque max. at stirring shaft [N-cm]	170(I)
Torque max. at stirring shaft [N-cm]	34(II)
Maximum Stirring volume(L)H20	100
Maximum stirring viscosity (cps)	70000
Maximum Torque [N-cm]	170
Setting accuracy speed [rpm]	1
Deviation of speed measurement n > 300rpm	±3 %
Speed Display	TFT
Clockwise or counterclockwise of stirring	YES
Speed setting：Touch key and turning knob
Time setting range	99h59min59sec
Temperature measuring range[℃ ]	-10~350
Temperature measurement resolution[℃ ]	0.1
Working status indicator	Standby (blue) , Running (green) , Alarm (red)
Power [W]	150
Motor principle	Brushless DC motor
Stirring element fastening	Keyless chuck, easy to install and replace the shaft
Chuck range diameter [mm]	0.5~10
Hollow shaft, inner diameter [mm]	10.2
Power supply	100~240VAC,50/60Hz
