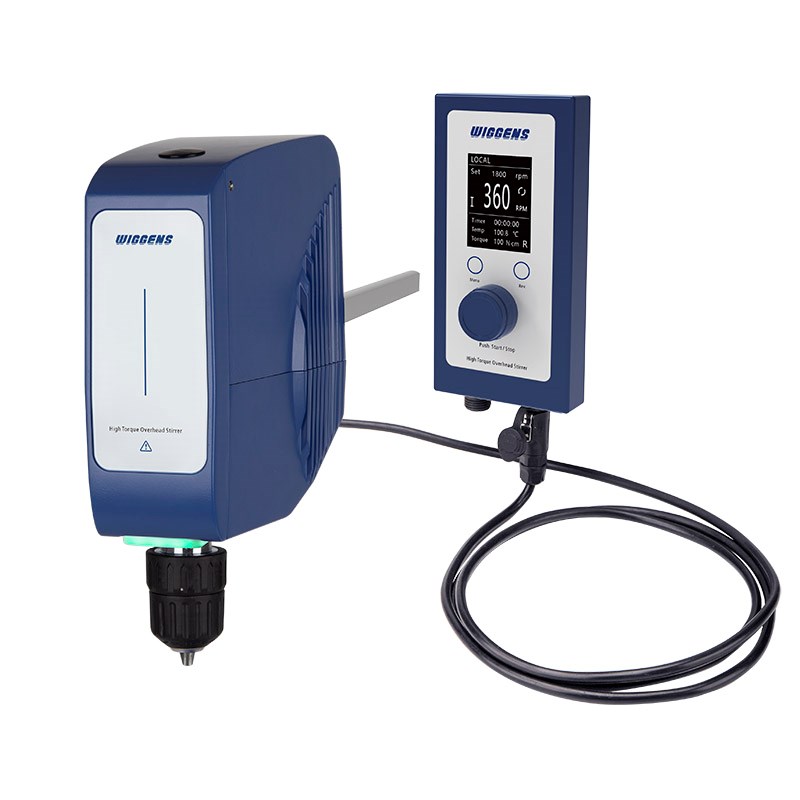

Ultra High Torque Overhead Stirrer

Home > Product > Overhead Stirrer > Ultra High Torque Overhead Stirrer >

< >

High Torque / High Speed Stirrer

Power:150W;Speed range [r.p.m] 1) 30~600 (I)601~3000 (II)

Model: WB3000-DF

Order NO.: 100400F

1294

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Ideally perform your professional stirring tasks requiring high functionality, safety, and longevity. Prestige touch TFT controller
Features
> Years of vibration-free and silent operation.
> Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring.
> Powerful torque capable of handling high viscosity tasks.
> Maintenance of constant motor speed by control system even under conditions of changing viscosity.
> Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
> Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
A through-shaft design allows for adjusting the impeller position to make height adjustment more convenient
Keyless chuck
It allows you to quickly and easily remove the stirring elements without any tools. Clamping range: 0.5-10mm

Specifications
Mode
WB3000-DF
Order No
100400F
Speed range [r.p.m] 1)
30~600 (I)
601~3000 (II)
Setting accuracy speed [r.p.m]
1
Deviation of speed measurement n > 300rpm
3 ±%
Speed Display
TFT display
Clockwise or counterclockwise of stirring
 NO
Speed setting
Touch key and Turing knob
Power [W]
150
Motor principle
Brushless DC motor
Torque max. at stirring shaft [N-cm] 2)
339(I) / 68(II)
Stirring element fastening
Keyless chuck, easily for install and replace the shaft.
Chuck range diameter [mm]
0.5~10
Hollow shaft, inner diameter [mm]
10.2
Fastening on stand
Extension arm
Extension arm diameter [mm]
13
Extension arm length [mm]
124
Housing material
Cast aluminum coating /
thermoplastic polymer
RS232 / RS485 interface
Yes
Dimensions of motor (W x H x D)
200 x 95 x 230
Weight
4.5
Power supply
100~240VAC,50/60Hz
1) Two grades of stirring speed for this series, the low-speed has more torque, suitable for chemical reaction system. And high-speed is suitable for sample pretreatment. According to
the set speed, It can be switched automatically between them.
2) The two speed ranges correspond to different maximum torques

Accessories
