Shaking Incubator

Temperature Range:RT+5℃~60℃,Shaker Speed:30~300rpm

Model: WS-300

Order NO.: W6091050

4955

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

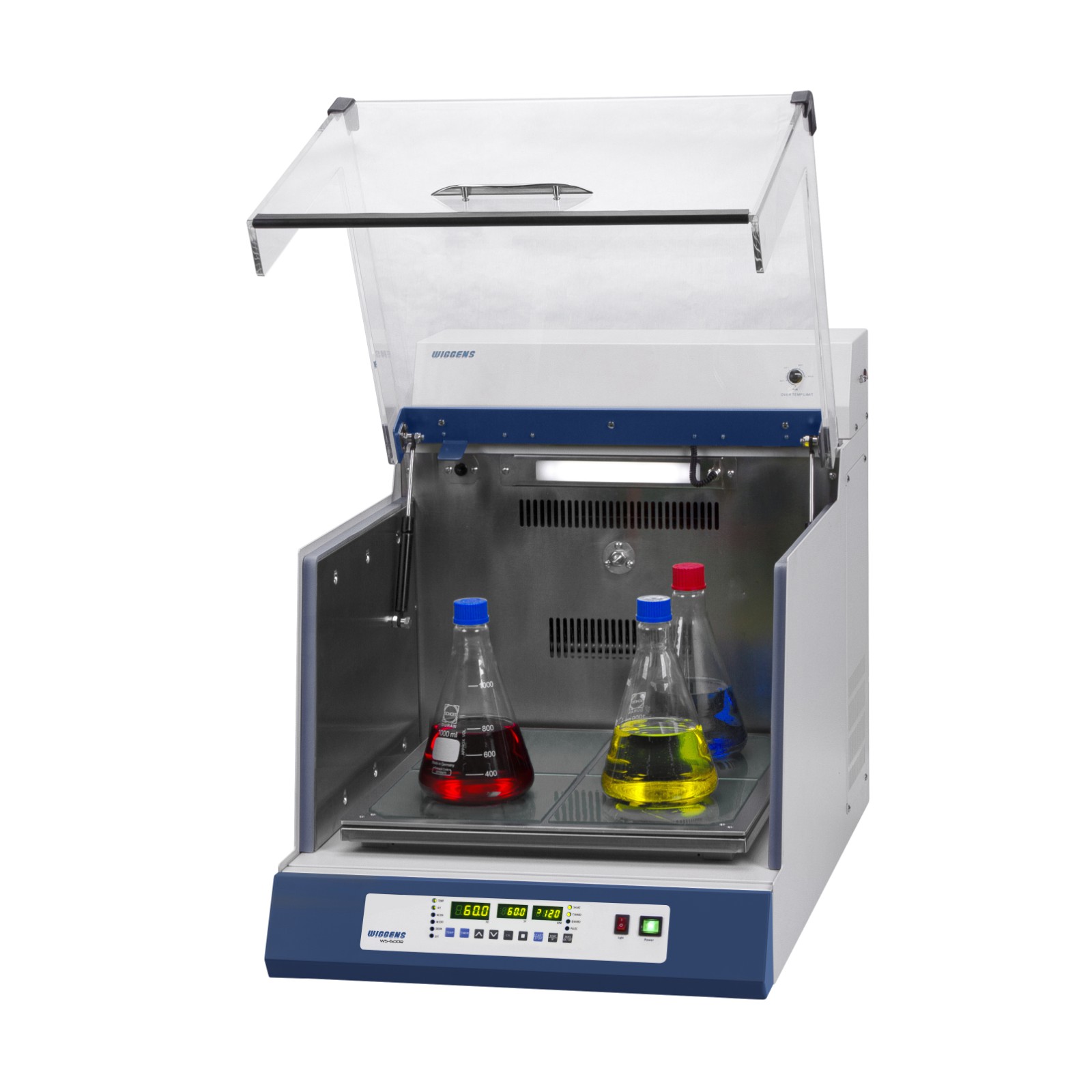

Combining a benchtop incubator/refrigerator with a dual-action (orbital and reciprocating) shaker, WS series shakers offer versatility for a variety of biological and biotech applications.

Shaking Features
* Dual shaking modes: orbital or reciprocating action.
* Speed range: 30 to 300 rpm.
* Programmable shaking motion.
- Timer range: 10 sec to 999 hr 59 min 59 sec.
- Forward & Backward, Pause: 10 sec to 59 min 59 sec.
* Selectable orbit diameter or stroke length: 20, 30, 40mm.


Operating Features
* Temperature control:
* +5℃ above ambient to 60℃ . (for WS-300 and WS-600)
* +15℃ to 60℃ . (for WS-300R and WS-600R)
* Microprocessor PID control.
* Simple calibration and auto-tuning functions.
* Digital timer with Delayed ON/OFF function: 1 min to 99 hr 59 min.
* High temperature limit setting and open door alarm.
* Convenient preset function for 3 most commonly used temperature settings.
* Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each pro_le.
* Adjustable 3-step fan speed with defrosting time and period control.
* Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
* RS-232 interface.


Optional Accessories

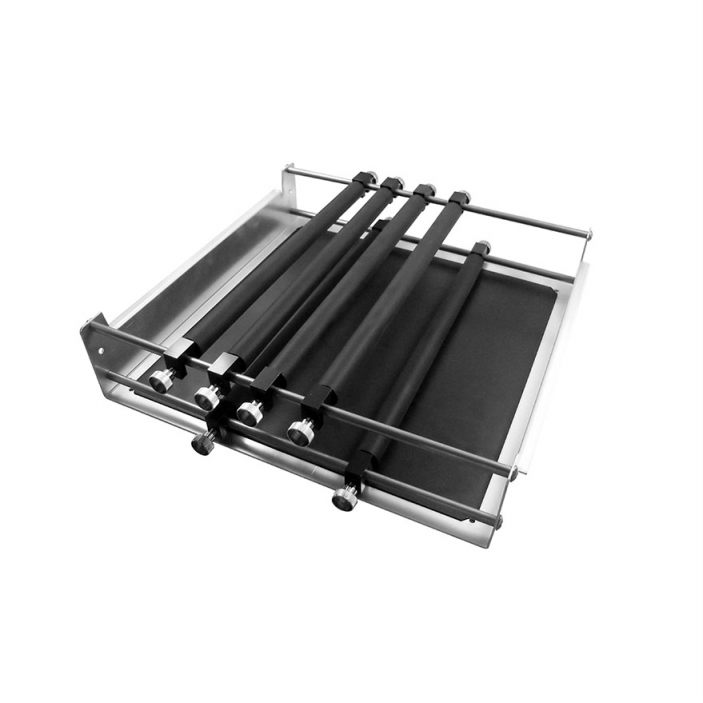

* Universal / Dedicated Platforms, Rubber Mats, Universal Attachments

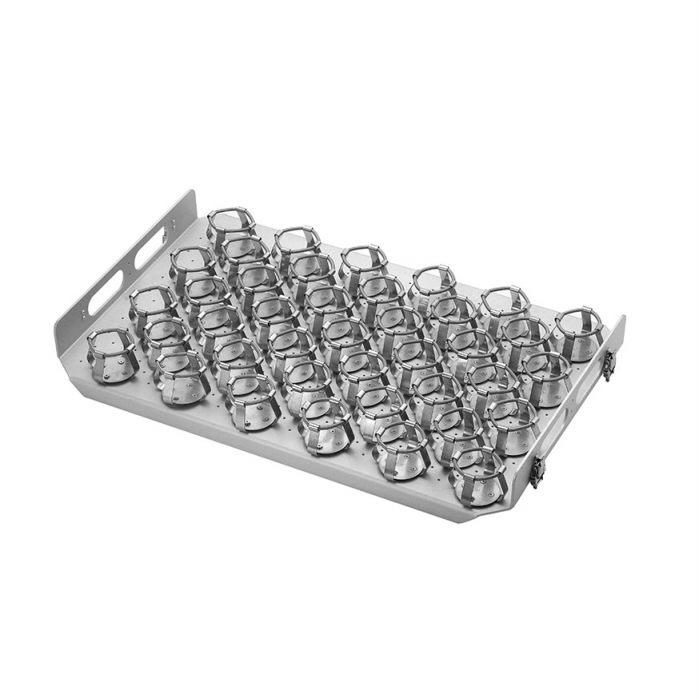

* Flask Clamps, Funnel Clamps

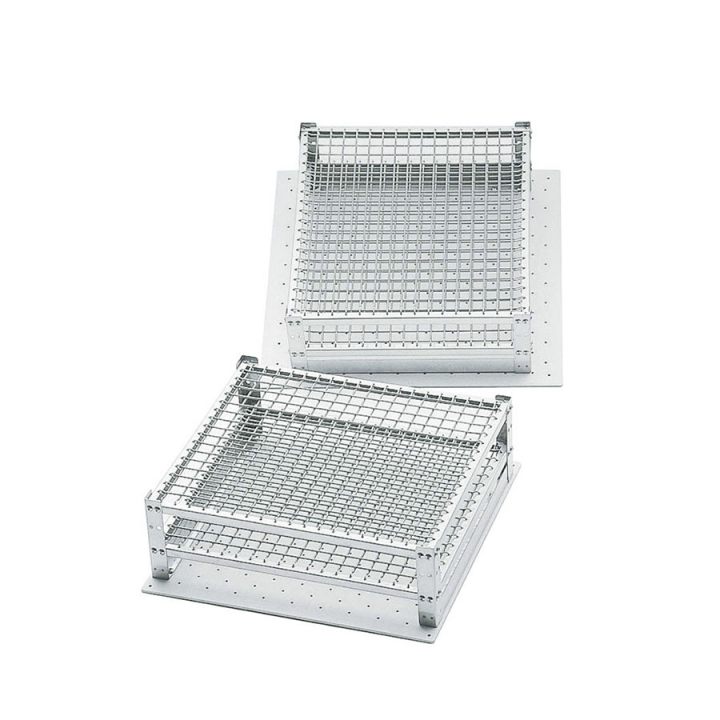

* Test Tube Racks, Spring Wire Racks
* Microplate Holders (three styles)
* Lab Sticker


Constructional Features
* Maintenance-free and durable BLDC motor.
* High-velocity fan ensuring uniform temperature distribution and rapid thermal recovery.
* Convenient sample monitoring thanks to the transparent acryl lid and the _uorescent lamp.
* Gas spring lid supports providing soft closing, smooth motion, and stopping.
* Environment-friendly CFC-free refrigerant.


Specifications

Model

WS-300

Volume (L)

53

Temperature Range (℃)

Ambient +5 ~ 60°C

Temperature Accuracy (℃)

±0.1 (38℃)

Temperature Stability (℃)

±1.0 (38℃)

Temperature Controller

Touch Control; Digital Display with PID automatic regulation

Temperature Heater

Heating Plate, 600W

Temperature Timer

Start / Stop / Duration setting; 10sec ~999hr 59min 59sec

Shaker Controller

PID automatic regulation

Shaker Power Unit

Brushless motor

Shaker Methods

Clockwise, Counter-clockwise, forth-back, interrupted,

Shaker Shaking Throw (mm)

20, 30 (standard ), 40

Shaker Speed (rpm)

30~300

Shaker Stability (rpm)

±1 (at 150rpm)

Platform Dimensions (W × D in mm)

350 x 350

Inside Dimensions (W × D × H in mm)

410 x 410 x 320

Outside Dimensions (W × D × H in mm)

440 x 740 x 625

Net Weight (kg)

74

Max. Load (kg)

10

Order No.

W6091050

Accessories
