DESCRIPTION

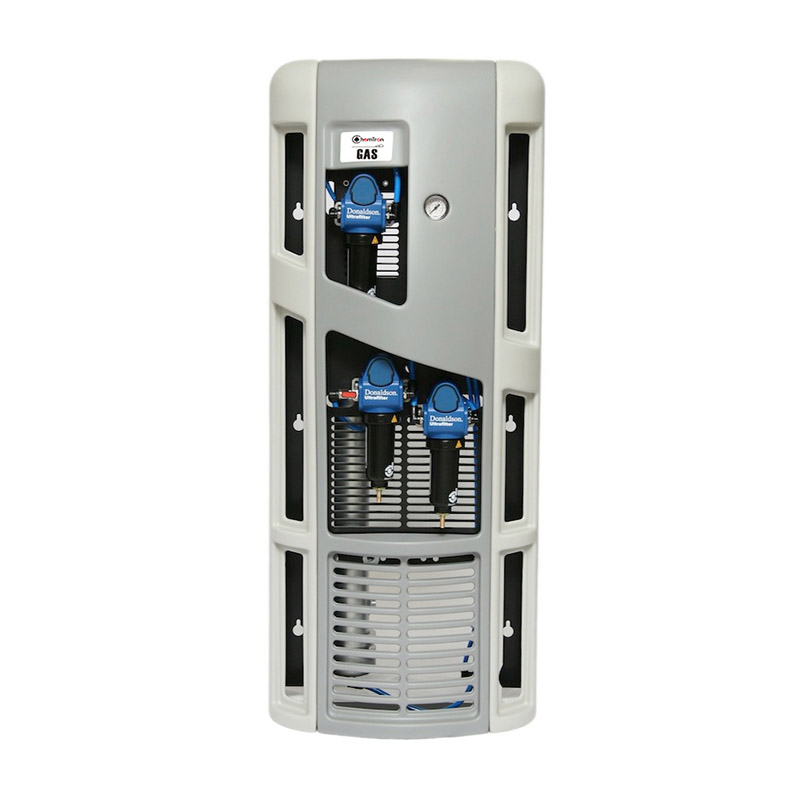

The Chemtron Gas Mistral Evolution Hybrid is a self contained generator that produces up to 12 L/min of high purity nitrogen and 22 L/min of air. The generator is designed to meet the specific requirements of the Sciex LC/MS. Nitrogen is produced by utilizing a combination of compressor and Carbon Molecular Sieve (CMS) technology. High and low pressure compressors are carefully matched to the CMS demand to ensure quite and reliable operation. This unique combination of dual compressor technology has several unique advantages over all  ther nitrogen generator commercially available.

Nitrogen is produced at low pressure, which ensures a longer compressor life and then compressed to 8 barg (116 psig) using a second stage compressor. This combination guarantees a long compressor life reducing maintenance costs and down time.

FEATURES
Produces a continuous supply of high purity nitrogen and air for Sciex LC/MS | On-demand supply 24/7 | Flow rate: 12 L/min of N2 and 35 L/min of air | Purity: LC/MS grade | Integrated low noise oil free compressors | Proprietary carbon molecular sieve technology | 2-year  complete product warranty | Complete “plug and play” LC/MS solution

BENEFITS
Eliminates dangerous high pressure cylinders helping to keep your employees safer | Removes the logistics, inconvenience, downtimeand costs of cylinder and dewar systems | Flow capacity to match your specific instrument demands | Ideal for all Sciex LC/MS  applications | Simple installation and operation | Superior air purification | Peace of mind | Install directly in the laboratory

APPLICATIONS
PRODUCTS FOR LC/MS
> Sciex LC/MS

OPERATING DIAGRAM
The Mistral Evolution Hybrid (PSA technology) includes two dynamically balanced oil-free air compressors and delivers a continuous stream of pure nitrogen gas for curtain gas and purified air for gas 1 gas 2 and source exhaust.

Each Mistral uses a pressure swing adsorption (PSA) system which removes oxygen, carbon dioxide and water from compressed air. The output is a stream of pure nitrogen with clean, dry purified air for Sciex LC/MS instruments.

INCREASE EFFICIENCY
