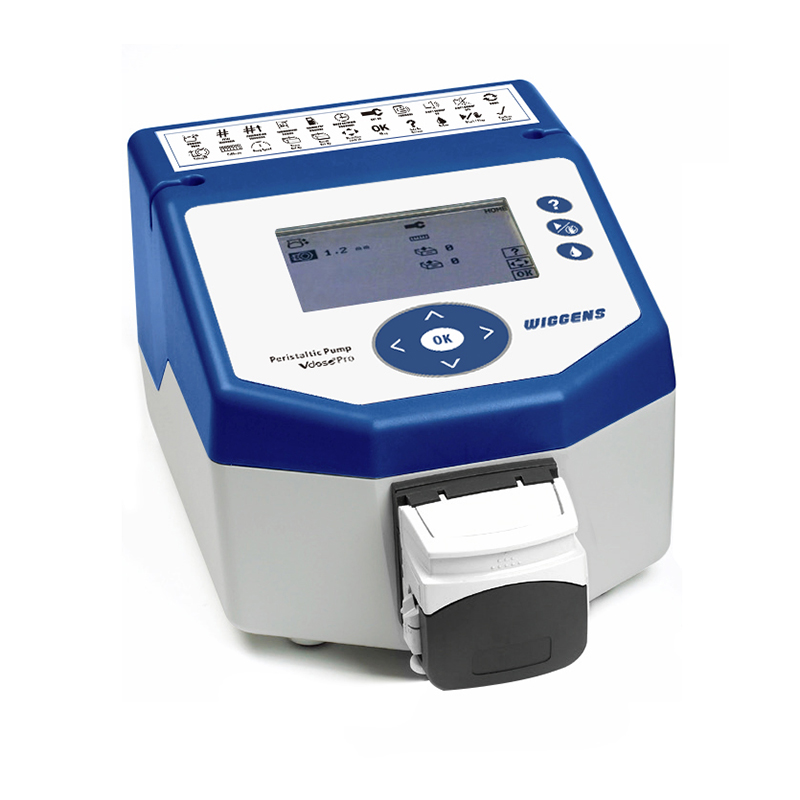

Peristaltic Pump

Home > Product > Peristaltic Pump / Suction Pump > Peristaltic Pump >

Peristaltic Pump

Power supply:100-240V,Capacity:37W

Model: Vdose® PRO

Order NO.: W1100100

1699

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Advanced Control Features
> Icon Driven User Interface allows for easy setup and operation
> Large Backlit LCD Display is easy to view from a distance
> Durable Front Overlay is resistant to chemicals
> Polarized and Angled Screen allows for glare free viewing
> “Trouble-Free” Calibration Screen allows for accurate and quick calibration
> Ultra High Precision Stepper Motor ensures repeatability and accuracy

User-Friendly Design Features
> Low Profile Design reduces space required on the bench or in a hood
> Pump Settings can be saved and recalled saving time in multi-use settings. Nine quick retrieval setups are available
> Multi-Language Help Screens: English, Chinese, Deutsch, Francaise, Japanese, Korean, and Spanish

Vdose® ELITE Additional Features
> Multiple stacking pump heads allow for higher volumes and multiple fill applications with one pump
> Microcassette head is ideal for precision micro-dispensing of liquids in well plates, microtubes, or microcentrifuge tubes
> Works with 2, 3, 6 and 8mm tubing
> Pump allows for different ramping profiles to avoid splashing or foaming
> Accommodates a variety of dispensing and process applications

Suggested Application
Research, Development, and Quality Control
Transfer and distribution of fluids into smaller containers, serial dilutions, sample preparation, and media dispensing.

Pharmaceutical and Biotechnology
Dispensing microbiological media, pill coating, dilutions, transferring live cells, additions and harvests to and from bioreactors, packaging and filling.

Food and Beverage
Common uses include dispensing flavorings, colorings, vitamins, and other additives in processing applications, and simple dispensing of end products on production lines or into shelf packages.

Waste Water and Sample Collection
Industrial and QC applications, environmental compliance hazardous/toxic materials evaluation and site sampling for liquids, sludge, earth/soil, water, etc. Ideal for sampling from barrels and drums.

International
The Icon Driven display and multi-language help screen work well in laboratories abroad.


Functionality Vdose® PRO
Modes Dispense Mode
Motor Dual Speed 75 and 150 rpm
Direction Unidirectional; Clockwise
Ramp Not Offered
Drawback Not Offered
Pump Heads Single
Order No. W1100100
Peristaltic pump standard package inclodes
Peristaltic pump, 2.3mm wall thickness single pump head; Silicone tube,ID 3mm, with built-in delivery nozzle and glass sinker, length 1.5m ( Order NO. 374311 ); Silicone tube, iD 6mm, , with built-in delivery nozzle and glass sinker, length 1.5m ( Order NO. 374313).

Technical Specification

Model Pump

Vdose® PRO

Power supply [V]

100-240

Capacity [W]

37

Operating Speed [rpm]

75&150

Tubing Sizes Available [mm ID]

2

3

6

8

Dispense Ranges for Tubing [mL]

0.01-9999.99

Flow Rate Ranges for Tubing [mL/min]

30&60

60&120

210&426

540&1080

Accuracy Midrange

≤±1%

≤±2%

≤±2%

≤±2.5%

Delay Time / Sec

0.5-99.9

Weight [kg]

5.4

Dim. with Pump Head [HxWxD]

18×21×34cm

Optional Pump Head Support

Pump Head for 1.6mm Wall Tubing

Pump Head for 2.3mm Wall Tubing

Accessories
