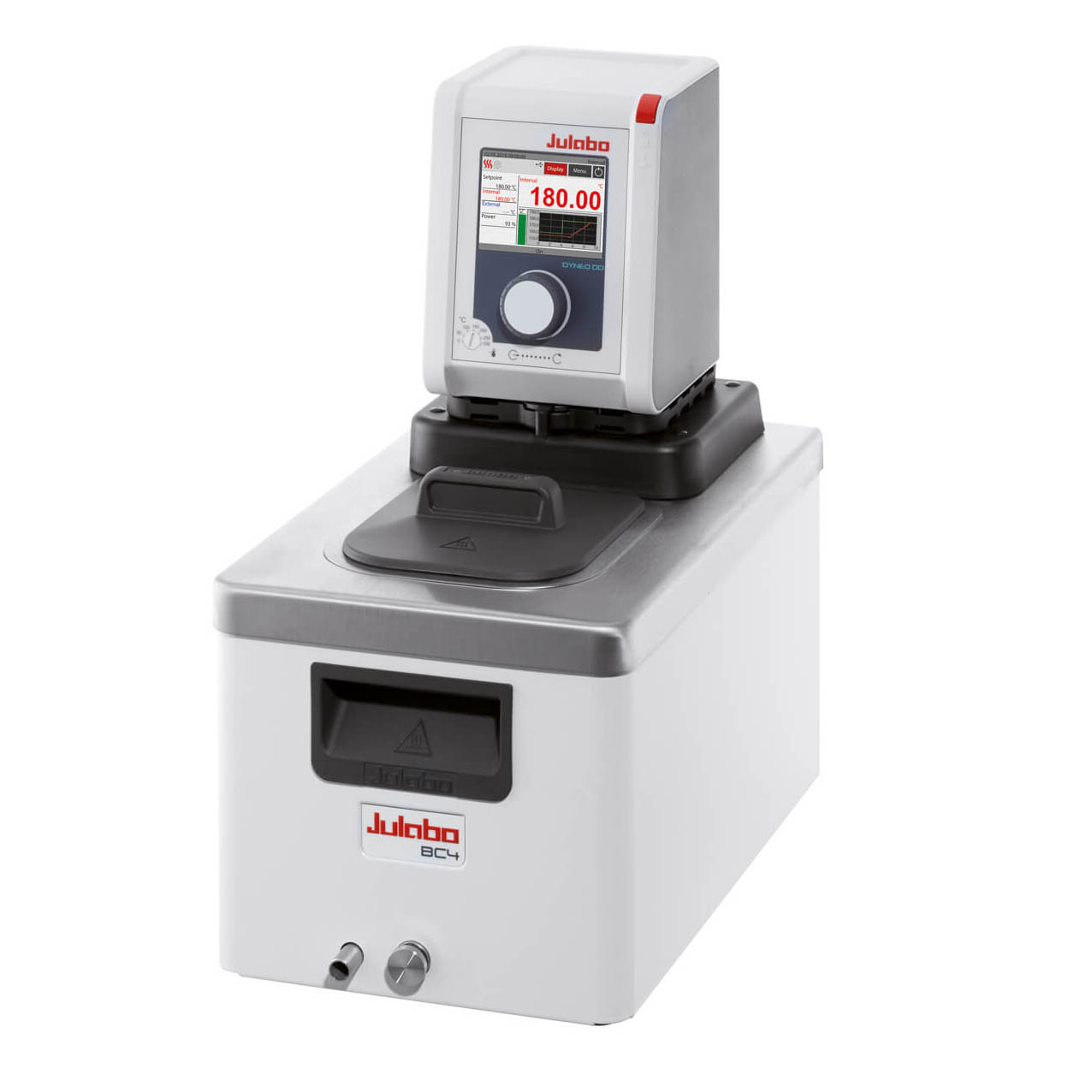

DYNEO DD heating circulators

Working temperature range:RT+5~200℃,Temperature stability ±0.01℃

Model:

Order NO.:

306

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

working temperatures range: RT+5~200℃
DYNEO DD heating circulators for internal and external applications are equipped with closed bath tanks. The tanks are well insulated and include a coil for counter-cooling. An integrated drain tap makes emptying the tank safe and clean. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation.

Your advantages
* Suitable for internal and external applications
* Powerful and infinitely adjustable pressure pump
* Flow rate 22 l/min, pressure 0.6 bar
* Easy switching between internal and external circulation
* Large color TFT display, multilingual interface
* Central rotary knob (controller) simplifies operation
* Integrated programmer
* Integrated external Pt100 connection
* USB port
* RS232 interface or analog interfaces
* Bath cover included with delivery
* Integrated drain makes emptying liquid easy and safe.
* High-quality thermal insulation of the bath tank


Technical Data

Model

DD-BC4

DD-BC12

DD-BC26

Working temperature range  (℃)

RT+5~200

RT+5~200

RT+5~200

Temperature stability  (℃)

±0.01

±0.01

±0.01

Heating capacity  (Kw)

2

2

2

Pump

(L/min)

8 ... 23

8 ... 23

8 ... 23

(bar)

0.1 ... 0.6

0.1 ... 0.6

0.1 ... 0.6

Bath opening/bath depth  (W x L /D cm)

13x15/15

22x15/20

22x30/20

Filling volume liters  (L)

3 … 4.5

8.5…12

19…26

Dimensions  (W x L x H cm)

23 x 41 x 42

33 x 49 x 47

39 x 62 x 48

Weight  (kg)

8.5

11.9

18.7
