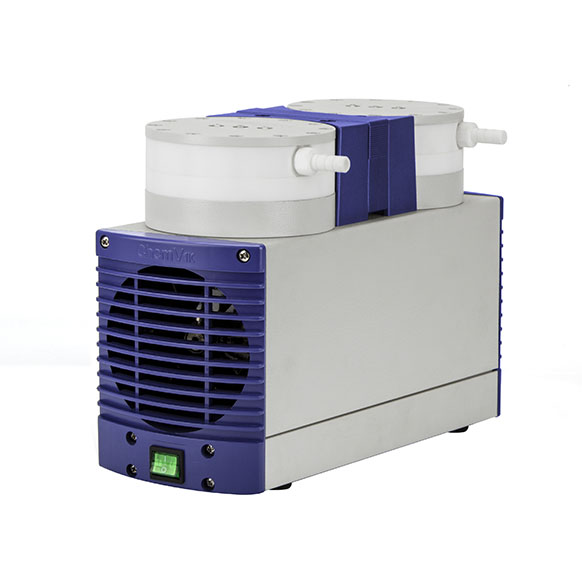

Chemical Resistant Diaphragm Pumps

Power 115V / 60Hz or 220V / 50Hz, Max. Power 90-250W

Model:

Order NO.:

312

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

SXD series are chemical resistant diaphragm vacuum pumps which can be widely used to hard acidic, basic and solvent vapors by utilizing corrosion proof PTFE on all the wetted surfaces. Through innovative mechanical technology and human considerations, we have made SXD series to be quiet, safe, maintenance-free and cost effective vacuum pumps.

Model

C410

C510

C610

Order No.

169410

169510

169610

Power

115V / 60Hz

220V / 50Hz

115V / 60Hz

220V / 50Hz

115V / 60Hz

220V / 50Hz

Max. Power (W)

90

95

250

245

250

245

Max. current(A)

1.4

0.5

2.4

1.1

2.4

1.1

Max. vacuum (mbar)

13

8

2-4

Max. Flow Rate (L/min)

25

25

41

34

37

37

Motor Speed (rpm)

1700

1450

1700

1450

1700

1450

Number of Stages

Double

Double

Double

Outlet (mm)

10

10

10

Size WxDxH(mm)

294*156*195

380*156*226

380*171*226

Weight (kg)

8.5

13.2

13.8

Noise Level (dB)

50

60

60
