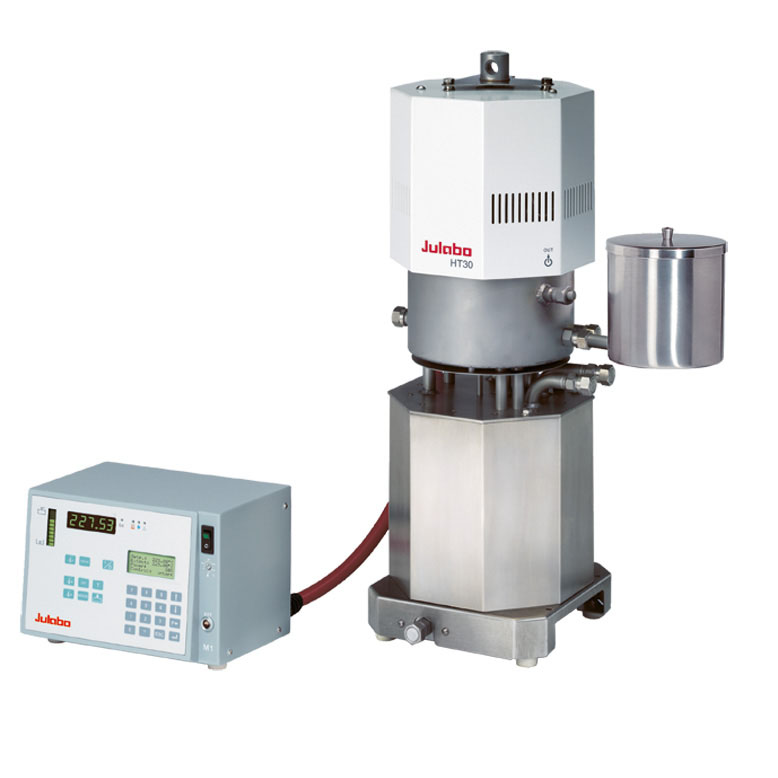

High Temperature Circulators Forte HT

Working temperature range +40 ... +400℃, Temperature stability ±0.01-0.1℃

Model:

Order NO.:

384

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

for working temperature range +40 ℃ to +400 ℃
JULABO High Temperature Circulators can be used for temperature applications up to +400 ℃ . The units provide Powerful heating capacities for shortest heat-up times and rapid compensationof exothermic and endothermic reactions. The closed  construction prevents oil fumes even at high temperatures. The units provide automatic heat-up and cracking protection to ensure long lifetime of the bath fluid. The filling system automatically purges the fluid system of air. Units with model designation ‚C.U.‘ are equipped with a Powerful cooling unit for tap water connection. This allows for temperature applications already at +20 ℃ and for rapid cooling. Typical applications: Reactors, autoclaves, distillation Distillation Columns, miniplant installations, pilot plants and production facilities.

Technical Data

Order No.

9800031

9800035

9800062

9800065

9800063

9800066

Model

HT30-M1

HT30-M1-CU

HT60-M2

HT60-M2-CU

HT60-M3

HT60-M3-CU

Working temperature range (℃)

+70 ... +400

+40 ... +400

+70 ... +400

+40 ... +400

+70 ... +400

+40 ... +400

Temperature stability (℃)

±0.01-0.1

±0.01-0.1

±0.01-0.1

±0.01-0.1

±0.01-0.1

±0.01-0.1

Cooling capacity at 20℃ (kW)



15



15



15

Heating capacity (kW)

3

3

7

7

6

6

Pump capacity flow rate (l/min)

14-18

14-18

14-18

14-18

14-18

14-18

Pump pressure (bar)

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2
