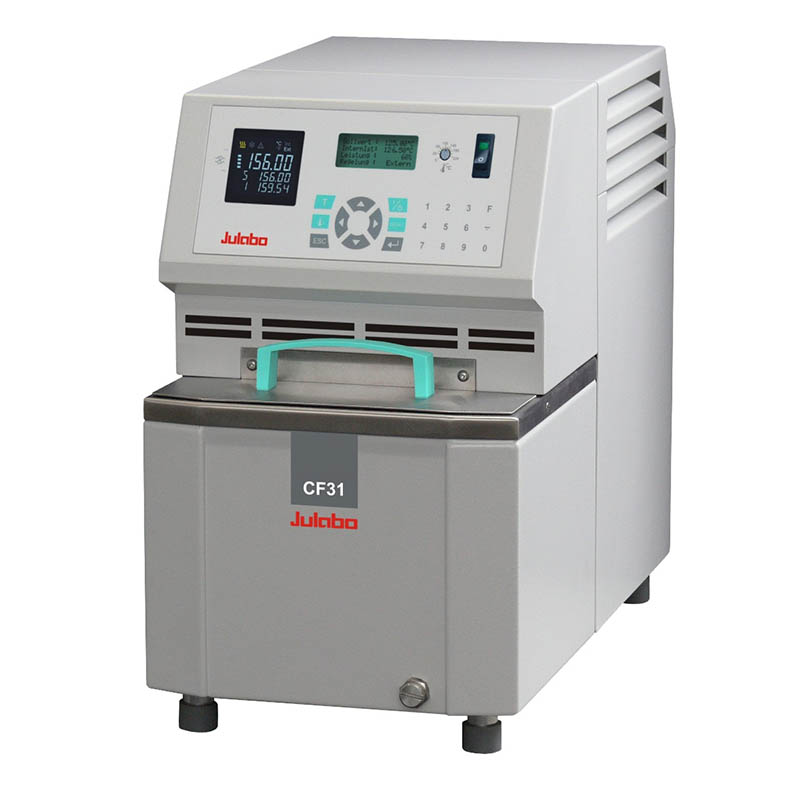

Cryo-Compact Circulators

Working temperature range -40 ... +200℃, Temperature stability ±0.02℃

Model:

Order NO.:

314

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

for working temperatures from -40 ℃ to +200 ℃
The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and safety class 3 according to DIN12876-1. The maximum ambient temperature of +40℃ as well as a ventilation air cooling allow installing the units very closely side by side with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments provide a reliable Microprocessor electronics with high temperature stability as well as warning and safety functions.

Technical Data

Order No.

9400330

9400340

9400331

9400341

Model

CF30

CF40

CF31

CF41

Working temperature range (℃)

-30 ... +150

-40 ... +150

-30 ... +200

-40 ... +200

Temperature stability (℃)

±0.03

±0.03

±0.02

±0.02

Cooling capacity at 20℃ (kW)

0.32

0.47

0.32

0.47

Heating capacity (kW)

2

2

2

2

Pump capacity flow rate (l/min)

15

15

22-26

22-26

Pump pressure (bar)

0.35

0.35

0.4-0.7

0.4-0.7
