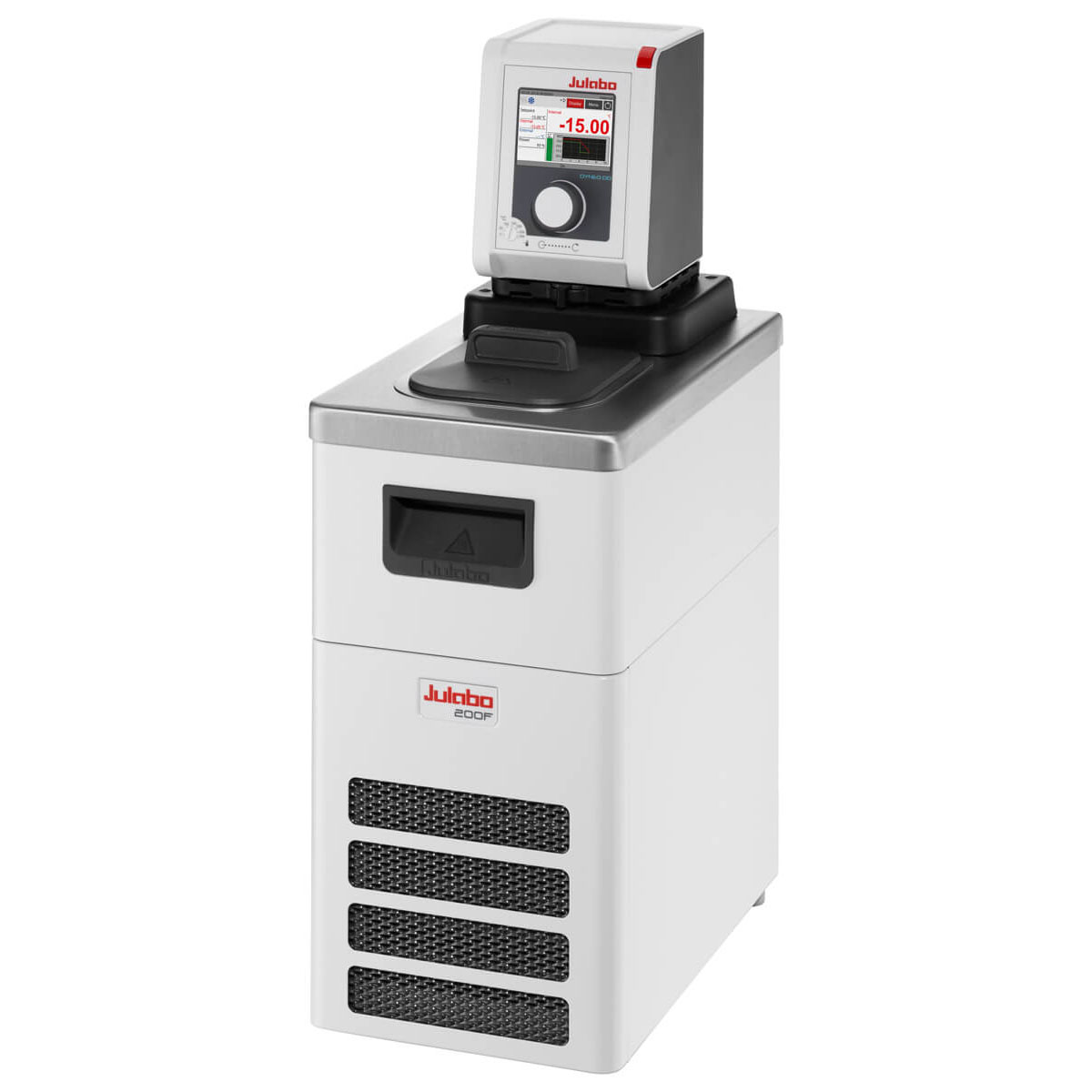

DYNEO DD Refrigerated-Heating Circulators

Working temperature range -50 ... +200℃, Temperature stability ±0.01℃

Model:

Order NO.:

295

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

working temperatures range: -50~200℃
DYNEO DD refrigerated circulators have a wide working temperature range. Refrigerated circulators are suitable for both internal and external applications. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation. Pump capacity is 22 l/min with pressure of 0.6 bar. The cooling machines operate precisely and reliably even at elevated ambient temperatures up to +40 ℃ .

Your advantages
* Powerful cooling machines
* Suitable for internal and external applications
* Optimized cooling coil design saves space in the bath tank
* Powerful and infinitely adjustable pressure pump
* Flow rate 22 l/min, pressure 0.6 bar
* Easy switching between internal and external circulation
* Large color TFT display, multilingual interface
* Central rotary knob (controller) simplifies operation
* Integrated programmer
* Integrated external Pt100 connection
* USB port
* RS232 interface or analog interfaces (optional)
* Bath cover included with delivery
* Integrated drain makes emptying liquid easy and safe.


Technical Data

Model

DD-200F

DD-300F

DD-600F

DD-1000F

Working temperature range (℃)

-20 ... +200

-30 ... +200

-35 ... +200

-50 ... +200

Temperature stability (℃)

±0.01

±0.01

±0.01

±0.01

Heating capacity (kW)

2

2

2

2

Cooling capacity in (KW)

200℃

0.2

-

0.6

-

20℃

0.2

0.3

0.6

1

10℃

0.17

0.3

0.54

1

0℃

0.15

0.27

0.5

0.9

-10℃

0.1

0.19

0.33

0.73

-20℃

0.02

0.08

0.19

0.5

-30℃

-

-

-

0.3

-40℃

-

-

-

0.13

Pump

(L/min)

8 ... 23

8 ... 23

8 ... 23

8 ... 23

(bar)

0.1 ... 0.6

0.1 ... 0.6

0.1 ... 0.6

0.1 ... 0.6

Bath opening/ bath depth (W x L /D cm)

13x15/15

13x15/15

22x15/15

22x15/15

Filling volume liters (L)

3 … 4

3 … 4

5 … 7.5

5 … 7.5

Dimensions (W x L x H cm)

23 x39 x 65

24 x42 x 66

33 x47 x 69

42 x49 x 70
