Unjacketed Filter Reactor

Small-volume filter reactor with 45/50 joint at top,

Model: JRS-6381-25

Order NO.: JRS-6381-25

325

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

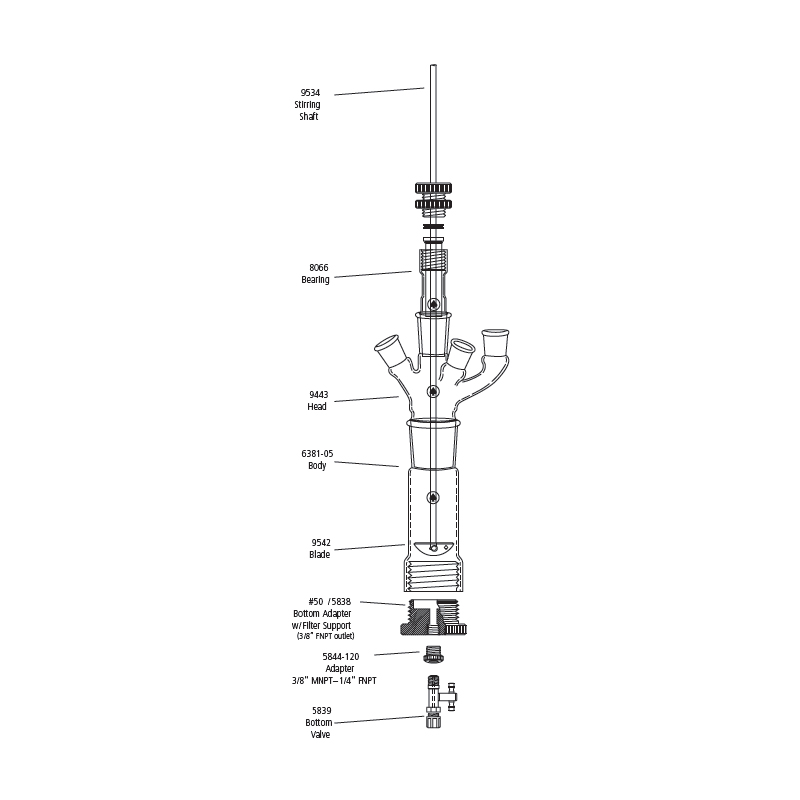

Small-volume filter reactor with 45/50 joint at top, and #50 Ace-Thred (internal glass thread) at bottom that accepts a 5838-83 (#50) PTFE bottom adapter with filter support and drain valve. Head has a 19/38 center neck and three 14/20 side necks. Complete item consists of: reactor body, head with joints, clamp, #50 PTFE bottom adapter with size –136 CAPFE o-ring, 350 micron polypropylene screen support, 100 micron polyethylene support, 5844 adapter, 5839-42 shutoff valve, 8066-120 non-flaking bearing, 9534-40 stirring rod, 9542-20 blade. For glass fritted support replacements for polypropylene screen and polyethylene support, see 5848 or 5814; for condensers, see 6024; for addition funnel, see 7299. For stirring motor, see 13523; for chuck, see 8124 or 8126.



Top Joint

Bottom Ace-Thred,#

Body I.D.,mm

Approx. Height,mm

Complete

Order No.

Head, only

Order No.

Body, only

Order No.

100mL Capacity

45/50

#50

51

65

JRS-6381-25

JRS-9443-10

JRS-6381-05

150mL Capacity

45/50

#50

51

125

JRS-6381-30

JRS-9443-10

JRS-6381-10



Replacement Parts

Order No.

Adapter, PTFE, 3/8" MPT–1/4" FNPT, only

JRS-5844-120

Bottom Adapter, #50–3/8" FNPT, only

JRS-5838-83

Bottom Shutoff Valve, 1/4" MNPT–1/4" Tube, PTFE

JRS-5839-42

Clamp, Plastic, 45/50

JRS-7598-45

Bearing, 19/22, 6mm

JRS-8066-120

Stopper, 14/20

JRS-9543-04

Stirring Shaft

JRS-9534-40

Stirring Blade, PTFE

JRS-9542-20



Optional Accessories

Order No.

PTFE Sleeves 14/20/Pkg. 3

JRS-7642-07

PTFE Sleeves 19/38/Pkg. 3

JRS-7643-06

PTFE Sleeves 45/50/Pkg. 3

JRS-7642-23

Thermometer Adapter, 14/20

JRS-5028-26

CAPFE O-Ring

JRS-7855-829
