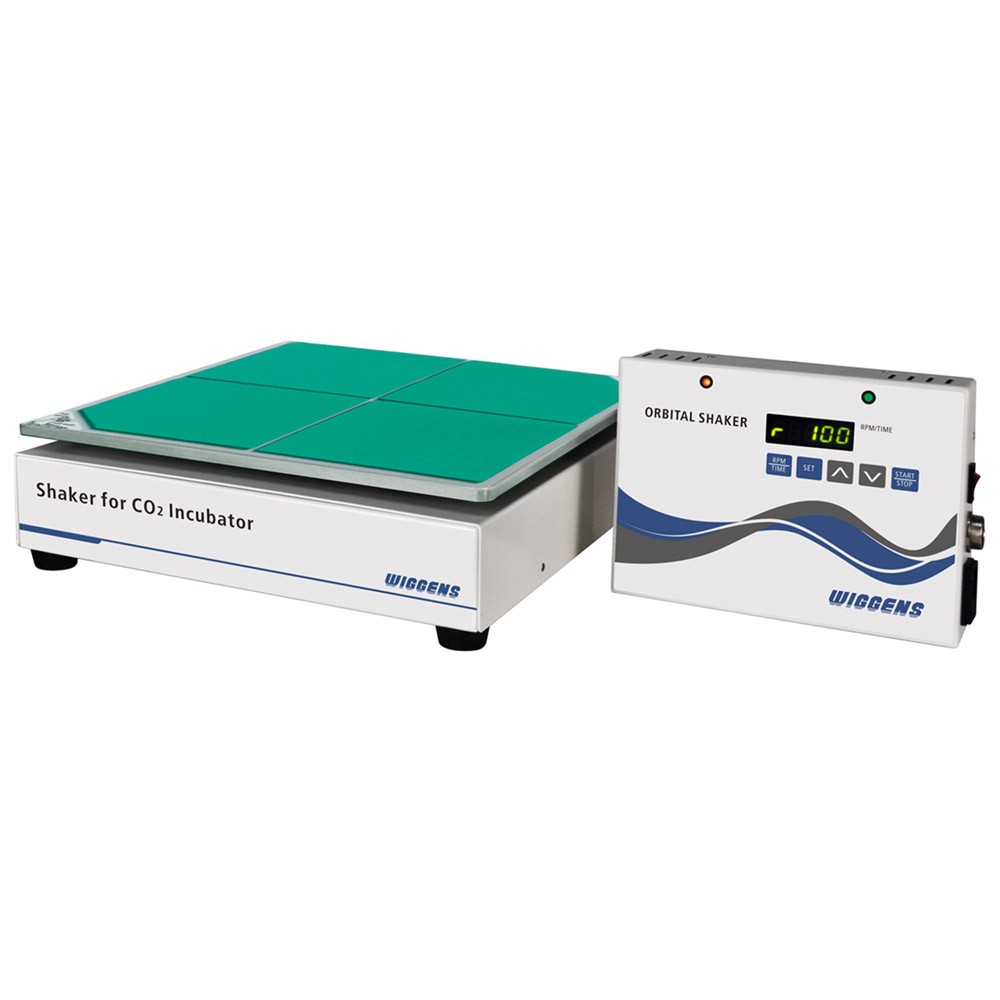

Shaker for CO2 Incubator

Speed Range:30 ~ 300rpm

Model: MRC

Order NO.: W6100300

2173

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

This is Compact Shaker with benefits such as small foot print and easy to move. The non-belt magnetic drive provides low noise, low vibration. Despite compact size, shaking is powerful and the workplace is large to load various vessels.

Features
Gentle magnetic drive
The non-belt magnetic drive design affows for high performance of water resistance. This most gentle drive unit has exceptionally smooth start-up and braking behavior, and is specifically good for cell cultures.

Made of stainless steel
The entire housing of shaker is made of stainless steel (SUS304), meeting the demand of GMP’s cleaning requirements. It is easy for the removal of any unwanted liquids and can be cleaned with chemicals.

Magnetic Attachment
The thin Wire Cable connection between the shaker and the control box can pass through the sealing part of the inner glass door although no access port is in your incubator.

Placing remote box with Magnet
Depending on the material type of the incubator or the situation of the lab, placing remote box is available with integrated magnets.

Specifications

Model

MRC

Motion

Orbital

Control

Microprocessor Digital

Motor

Plate BLDC motor

Drive System

Direct Magnetic Drive

Display

LED display

Speed range(rpm)

30 ~ 300

Accuracy(rpm)

±1

Shaking Throw(mm)

25

Time Range

Continuous or up to 99 hours 59min

Time Increment

1min

Shaker size(W x Lx H mm)

487 x 519 x 132

Weight25/50mm(Kg) 25/25

Platform Size(W x L mm)

455 x 455

Control box Size(W x Lx H mm)

155 x 95 x 25 / 0.5

Power

100-240V 50/60HZ



Load Capacity

100mL x 36
250mL x 23
500mL x 16
1000mL x 9
2000mL x 4

Order No.(25mm)

W6100300

Order No.(50mm)

W6100350

The try of various specifications for individual fitting can be ordered separately to be assembled by users.

Accessories
