Vdose Syringe Pump

Flow Rate:1.25 μl/min~375 ml/min

Model: Vdose1200

Order NO.: V900703

1300

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

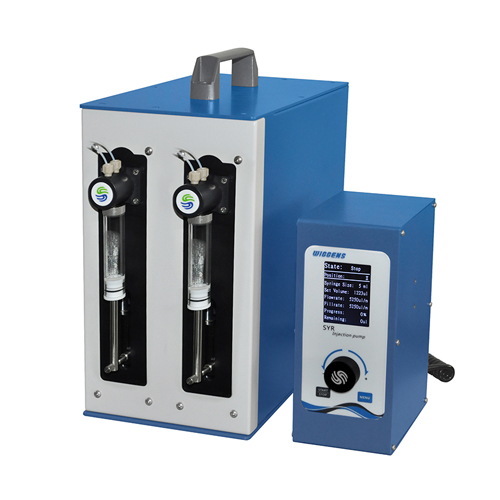

The standard syringe pump includes injection element and controller, and the injection element can be single channel or dual channel. Vdose serial syringe pump can carry out accurate liquid transmission automatically, the system is also programmable with a PC to realize more complicated liquid dosing operations.

* Big TFT display can show the dosing parameters clearly on one screen
* 11 types of syringes can be selected, from 25ul to 50ml, it is easy to change the syringes
* Dosing speed: from 1.25ul/min to 375ml/min
* All parts contacted with the liquid are glass or PTFE, that guarantees the chemical resistance
* The three port valve can switch automatically to complete the repeating withdrawing and dosing
* The valve ports can be congured for convenient liquid recovery without taking part the tubing
* RS-232/485 digital communication ports available for remote PC or PLC control

Specifications

Model

Vdose1200

Number of dosing channel

Single Position

Flow Rate

1.25 μl/min~375 ml/min

Precision

≤5

Weight

5.5 kg

Outer Dimensions (H x W x D mm)

305 x 89 x 330

Syringe

Size

50μl~25 ml

Material

Glass and Teflon wetted

Dispense Resolution

1/6000 of the syringe size in use

Feature

Easily interchangeable

Valve

Material

PEEK

Feature

3 to 8 selectable ports

Interface Port

RS232 / 485

Electric requirements

110~240V,50/60Hz

Order No.

V900703



Order Information

Order No.

Description

V900703

Single Position Syringe pump, with dosing unit and controller (need to specify the valve ports and glass syringe volume)

V900702

Dual Position Syringe pump, with dosing unit and controller (need to specify the valve ports and glass syringe volume)

Accessories

V900700-5

50μL glass syringe with Teflon plunger

V900700-6

100μL glass syringe with Teflon plunger

V900700-7

250μL glass syringe with Teflon plunger

V900700-8

500μL glass syringe with Teflon plunger

V900700-9

1mL glass syringe with Teflon plunger

V900700-10

2.5mL glass syringe with Teflon plunger

V900700-11

5mL glass syringe with Teflon plunger

V900700-12

10mL glass syringe with Teflon plunger

V900700-13

25mL glass syringe with Teflon plunger

PTFE Tubing and Fittings

V900700-19

Tubing Length: 6m; Outer Diameter: 1/8”; Includes: 12 nuts and 12 ferrules

V900700-20

Tubing Length: 30m; Outer Diameter: 1/8”; Includes: 24 nuts and 24 ferrules

V900700-21

Tubing Length: 6m; Outer Diameter: 1/16”; Includes: 12 nuts and 12 ferrules

V900700-22

Tubing Length: 30m; Outer Diameter: 1/16”; Includes: 24 nuts and 24 ferrules
