Retreat Curve Impeller (PTFE Coated)

Impellers

Model: 005.80850.300

Order NO.: 005.80850.300

2960

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

ACCESSORIES OVERVIEW

Description

> Stainless steel core surrounded by PTFE mantle
> Chemical resistant
> Economically friendly
> Strong structure which doesn’t break easily
> Can be used up to a max. temperature of 280℃
> The stainless steel core is revealed at the upper part and can be plugged into the stirrer
> The length of the revealed part is 50mm

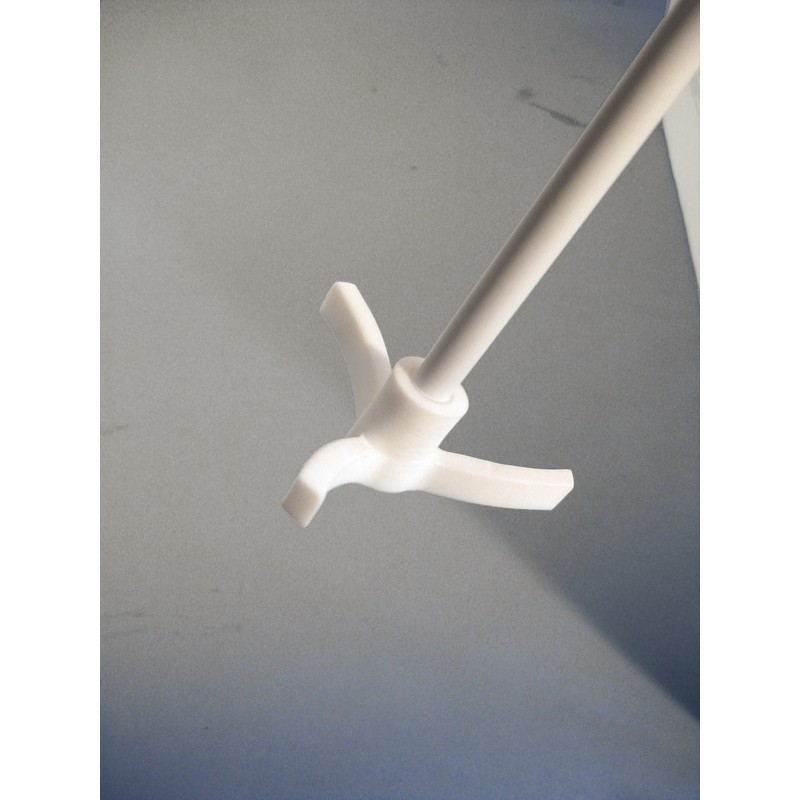

Retreat Curve Impeller (PTFE Coated)
The blades are formed in a 30° angle. It creates tangential and axial flow as well as high shearing force. Used for mid- and slow-speed stirring, and for all levels of viscosity.

Order No.

Shaft Ø(mm)

Length(mm)

RotorØ(mm) Blade Ht(mm)
005.80850.300

8

300

50

10

005.80875.300

8

300

75

15

005.80875.300

8

400

50

10

005.80875.400

8

400

75

15

005.81050.400

10

400

50

10

005.81075.400

10

400

75

15

005.81050.500

10

500

50

10

005.81075.500

10

500

75

15
