Digital Pulse Mixer

Home > Product > Shaker / Mixer > Digital Pulse Mixer >

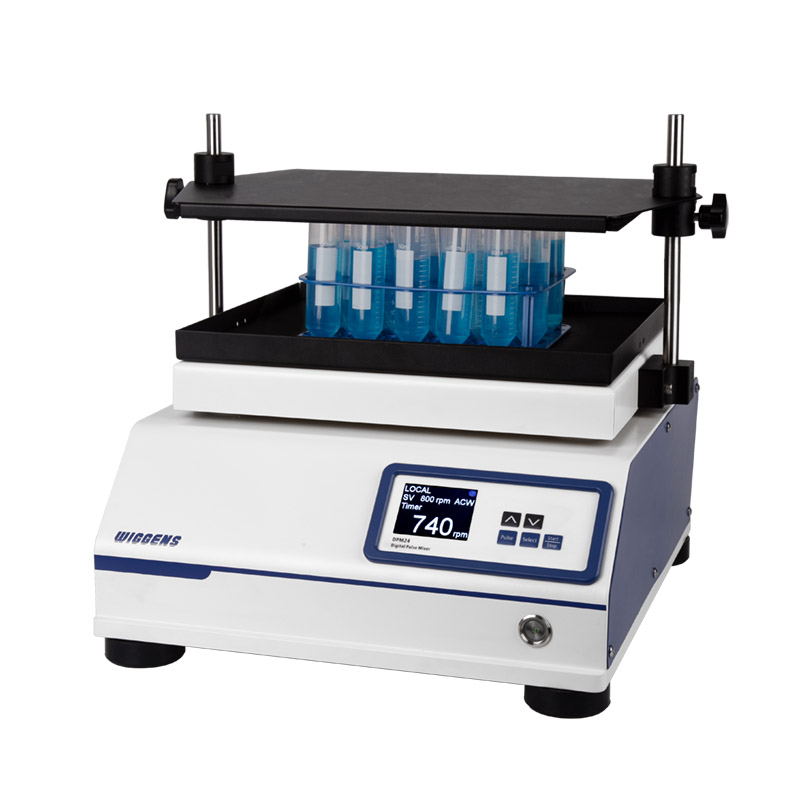

Digital Pulse Mixer

DPM-24 Digital Pulse Mixer, 100 ~1500rpm, Feedback Control, BLDC motor with Built-in digital timer and Quick timing mode

Model: DPM-24

Order NO.: W5021001

691

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Performing high or low speed pulse vortexing/ mixing for most applications

WIGGENS Digital Pulse Mixer is capable of performing high or low speed pulse vortexing/ mixing for most applications. This unit is able to accommodate a wide variety of glassware, racks, well plates or reactor blocks for accurate, repeatable results. The microprocessor based control technology allows for display of speed, multi-function timer, and pulse profiling.

Advantages

* Working speed range from 100rpm to 1500rpm
* Bright TFT with display resolution 1rpm, easy to operate
* Built-in digital timer (seconds: 1-60, minutes 1-60, hours 1-24)
* Preset run times of 30, 60, 90 and 120 seconds
* User selectable pulse profile (Pulses-per-minute: 1-100), Ppm-duty-cycle: 1-99 % > Timer and Pulse mode may be combined for timed-pulse mode
* Fail Safe Mode to prevent speed fluctuations
* BLDC motor provides low noise and strong durability
* User-friendly membrane switch interface (4-button)
* Smooth Starting function to protect the split out of sample.
* Communication port (RS232) , optional software for real time data acquisition

Application
Mixing blood samples, DNA extractions, blotting techniques, staining and destaining gels, hybridizations


Specifications

Model

DPM-24

Working speed range(rpm)

100 ~1500

Speed control type

Feedback Control

Control panel

TFT(Thin Film Transistor), Touch key

Motor type

BLDC motor

Quick timing mode

30s, 60s, 90s, 120s are avalible

Pulse mode

Pulses adjustment range(min): 1-100

Duty Cycle adjustment range(%): 1-100

Timer and Pulse mode

Timer: 00:00:00 to 24:60:60

Pulses adjustment range(min): 1-100

Duty Cycle adjustment range(%): 1-100

Electrical requirement

110 or 240VAC, 50 / 60 Hz


Sample Preparation
Our Digital Pulse Mixers are ideal for preparation work in Volumetric flasks.
Simply changing the chemical resistant bottom foam pad allows you to quickly switch flask sizes while using one standard
hold down top.

Order No.

Description

R801207

Hold down top with holes

R66501

½" pad for 25ml vol. flask, 49 Position

R66502

½" pad for 50ml vol. flask, 14 Position

R66503

½" pad for 100ml vol. flask, 14 Position

R66504

½" pad for 250ml vol. flask, 8 Position

R66500

½" pad for 500ml vol. flask, 6 Position
