Microplate Shaker

Home > Product > Shaker / Mixer > Microplate Shaker >

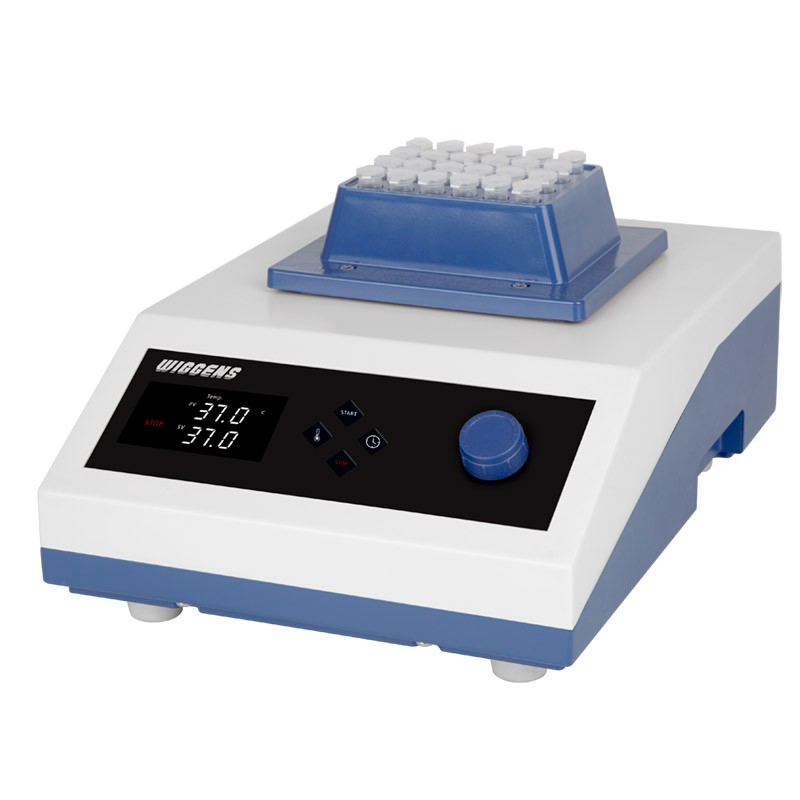

Heating Shaker

Heating power:360W,Weight:8.3kg

Model: WS-350B

Order NO.: W5012350

488

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Interval mix function in program mode can be properly set according to users' test condition.

Features
> Microprocessor PID control ensuring consistent shaking motion and precision accuracy.
> Speed range from 150 to max. of 1500 rpm (depending on the choice of interchangeable blocks)
> Maximum 9 temperature range-specific calibration.
> Memory function of programmed protocols allowing relevant parameters (such as temp., rpm, time) of each protocol step to be stored. -Up to 10 protocols allowed for memory storage. -Up to 10 steps allowed for each protocol. -Interval Mix function (continuous switching between shaking and phasing)
> Two types of timer modes: -Timer 1 starts only after reaching the set temp. -Timer 2 starts right after the timer setting.

> 96-Well Tube Block Set with Covers
> 0.5mL / 1.5mL / 50mL Tube Block Set with Covers

Constructional
> Bright VFD display with responsive touch buttons.
> Its powder coated stainless steel body is highly chemicalresistant and easy-to-clean.
> Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks.
> Low-profile design with rubber feet for minimal vibration and noise.
> Blocks can be easily interchanged by the included block lifter

Specifications

Mode WS-350B
Order No. W5012350
Control Feedback control PID
Display VFD (0.1℃ resolution)
Temperature Range (℃ ) Amb.+5-100℃
Stability at 80℃ (±℃ ) 0.3
Variation at 80℃ (±℃ ) 0.7
Heating power (W) 360
Safety OverTemp. Heating plate
PCB
Over Current Current limit protection
Shaking System Dimension (WxDxH) Motion Type Orbital
Speed range (rpm) 96-well tube block 150 -1500
0.5mL tube block 150- 1000
1.5 mL tube block 150-1000
50 mL tube block 150-800
Orbit Size(mm) 2
Overall(WxDxH)(mm) 276 x 334 x 170
Weight(kg) 8.3
Electrical requirements 230V, 50/60 Hz,1.7A


Accessories

Order No. Description Max. Mountable Tube
W5012451 0.5 mL Tube Block Set with Cover 0.5mL x 48 holes (microtube)
W5012452 1.5 mL Tube Block Set with Cover 1.5mL x 24 holes (microtube)
W5012453 50 mL Tube Block Set with Cover 50mL x 6 holes (centrifuge tube)
W5012454 96-well Tube Block Set with Cover 0.2mL x 96 holes (microtube)



Accessories
