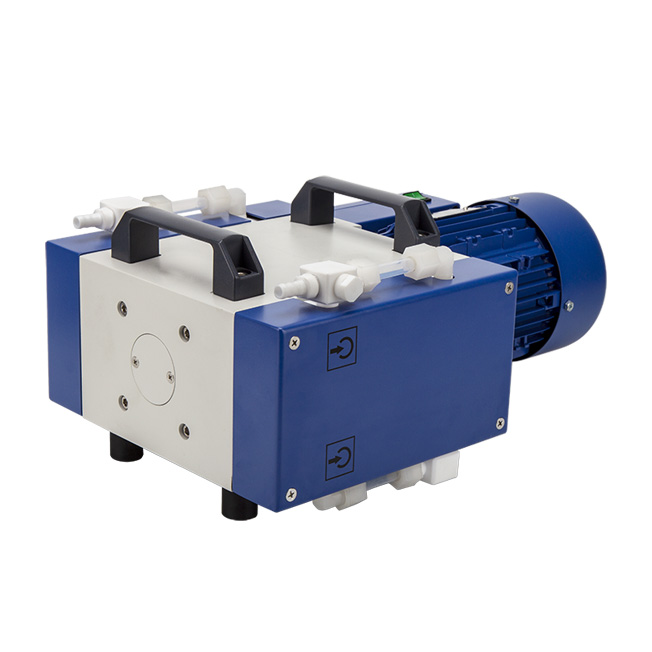

High-Power Chemical Resistant Diaphragm Pumps

Power 370W, Max. vacuum 30mbar

Model:

Order NO.:

284

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

SXD series are chemical resistant diaphragm vacuum pumps which can be widely used to hard acidic, basic and solvent vapors by utilizing corrosion proof PTFE on all the wetted surfaces. Through innovative mechanical technology and human considerations, we have made SXD series to be quiet, safe, maintenance-free and cost effective vacuum pumps.

Model

C900E

C920Z

C960T

C980V

Order No.

169900

169920

169960

169980

Power (W)

370

370

370

370

Max. vacuum (mbar)

30

8

2

1

Max. Flow Rate (L/ min)

95

75

75

40

Motor Speed (rpm)

1425

1425

1425

1425

Number of Stages

Single

Double

Triple

Quarte

Outlet (mm)

10

10

10

10

Size WxDxH(mm)

440*270*240

440*270*240

440*270*240

440*270*240

Weight (kg)

21.5

21.5

21.5

21.5

Noise Level (dB)

50

50

50

50
