VR-series Reactors

Home > Products > Chemtron Reaction Solutions > Stainless steel reactor > VR-series Reactors >

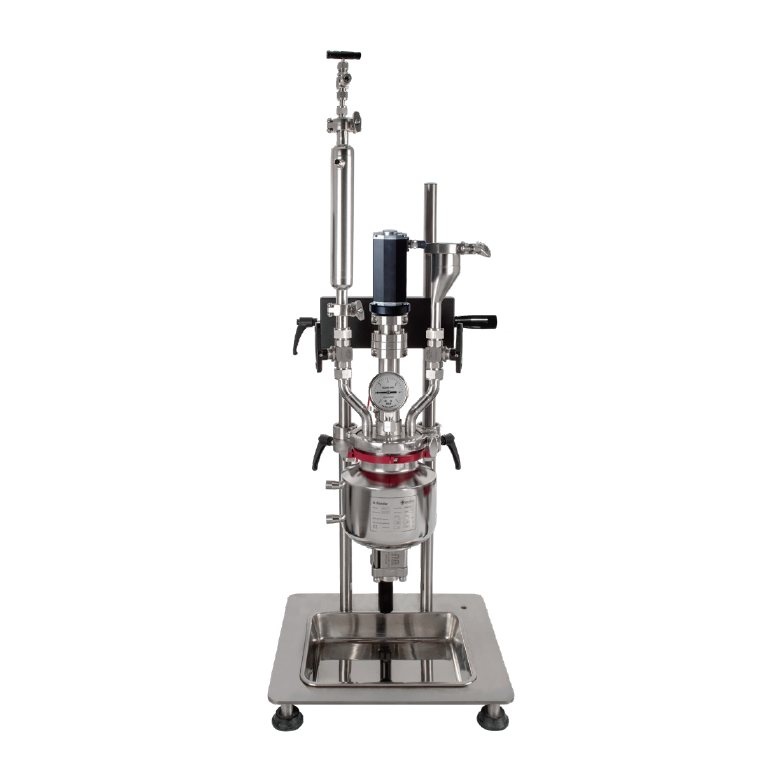

VR-2000 Bench Top Reactor

The requirements of our customers for the reaction vessels are as varied as the respective processes which arecarried out in them.

Model: VR-2000

Order NO.:

501

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

The requirements of our customers for the reaction vessels are as varied as the respective processes which arecarried out in them.
In recent decades,we have developed a modular system with standardised connection components,in order to economically implement individual solutions.This greatly simplifies the design and construction of our custom-made products.

Specification

Model

VR-2000

Performance and Material

Material

316L S.S.

Max. Temperature

300℃

Max. Pressure

≤5bar

Jacketed vessel

Volume

2000ml

Flange

DN133

Inner Dia.

127mm

Inner Height

150mm

O-ring

Material

PTFE( Viton, FFKM for optional)

Size

133mm

Lids

Flange

DN133

Center Ports

M38X2

Other ports

1/4" and 1/2" NPT

Heating unit ( Optional)

JULABO unit

Yes

Stir

Type of sealling

Double mechanical seal

Motor

Overhead stirring motor

Speed

20~1800rpm( Other model for optional )

Frame

Type

SS Frame

Size

600*360/700mm( L*W*H )

Liquid receiving tray

Stainless steel
