Max.temperature:200℃;Max.pressure:25bar

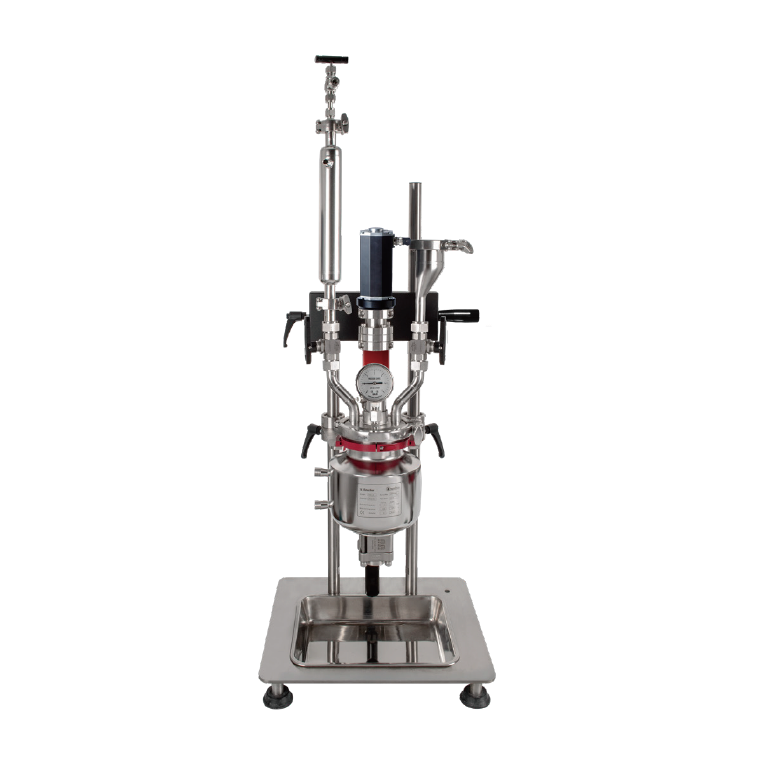

Model: NR-500
Order NO.: NR-500
1092
Specific parameters will be adjusted according to product upgrades, without notice.
The NR reactors enable experiments with 5L to 200L and negative pressure. In comparison to the other series of reactors, no loss of flexibility or safety has to be made. Easy handling and highest safety and maximal flexibility and individuality.
Each of low pressure reactors can be equipped with a bottom drain valve. NR-5L reactors without a bottom drain valve can be provided with a PTFE insert. However, reactors with a bottom drain valve cannot be equipped with PTFE inserts. NR-5L to NR-200L reactors with a bottom drain valve have three different configurations:
● Basic configration for M1
● Basic configuration with distillation unit for M2
● Basic configuration with short-path distillation unit for M3
Standard armatures of the Low-pressure Reactor are a rupture disc, a dip tube, a valve and a tool for opening and closing the reactor. In total, NR-5L to NR-200L have eight ports, e.g. for pressure monitoring. The ports can be used according to customer needs. The number of free ports can be enlarged when using T-connections.
Features
● 5L~200L / 25 bar / 200℃
● With or without jacket, with bottom outlet
● Quick closure chain design
● O-seal ring made of Viton, Other materials are optional
● Heating by electrical or thermostated mantle
● Stirring by overhead stirrer
Technical Specification
|
NR-500 |
|
Material |
Stainless Steel or Hastelloy |
|
Temperature max. |
200℃ |
|
Pressure max. |
25 bar |
|
Reactor Vessel |
Volume |
approx. 500 ml |
Inner Diameter |
83 mm |
|
Inner Height |
80 mm |
|
Weight |
approx 3.7 kg |
|
Bottom Drain Valve |
√ |
|
TFMTM-PTFE Insert |
optional |
|
Armatures |
Standard Armatures |
Rupture Disc, Dip Tube, Valve, Tool |
Pressure Measurement |
analog and/or digital |
|
Ports (total) |
7 |
|
Ports (free) |
3 |
|
Type of connection |
8 mm Tube Connection |
|
Heating Systems |
Via Fluid |
with jacket |
Via Fluid (Heating Coil, optional) |
Heating coil |
|
Stirring |
WB20C and RV 100-SS |
|
Stand |
Pneumatic bench-top stand (M1 and M2) Electric lifting stand (M3) |
