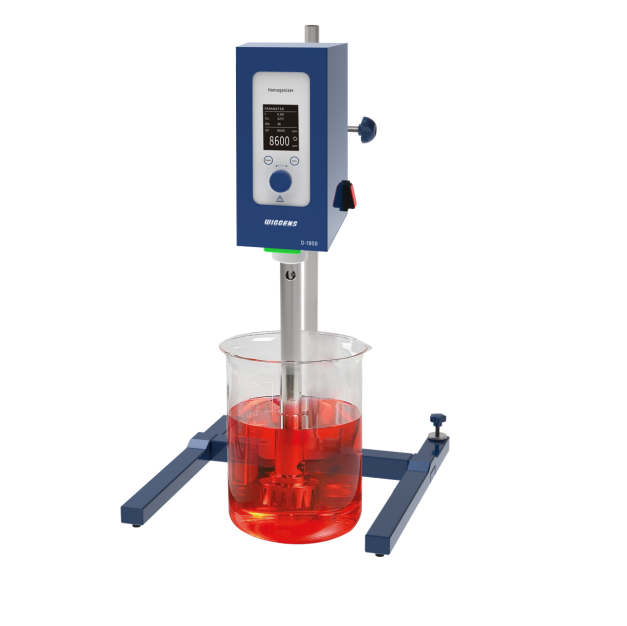

High Speed Homogenizer

Speed with Zero-Load：500~30,000 rpm,Process Range H2O：10~40,000mL

Model: D-1500

Order NO.: 3050104

Specific parameters will be adjusted according to product upgrades, without notice.

Used for homogenizing, emulsifying or suspending. There is a broad spectrum of dispersing tools to choose from.

Features

> Quick coupling for the dispersing shafts

> Powerful and safe drive systems

> TFT display screen, intelligent control

> Long working life

Multiple dispersed shafts are exchangeable. The optimum for each specific homogenizing application can be chosen.

The efficiency of WIGGENS dispersing shafts is unrivalled. Thanks to optimized shear forces and bounce effects the

processed medium will be treated at finest level in shortest time.

Dispersing shafts can be disassembled, cleaned easily and can be sterilized / autoclaved according to all current methods.

Specifications

Model	D-1500
Order No.	3050104
Display screen	TFT
Motor	AC
Speed with Zero-Load (rpm)	500~30000rpm
For volumes Range	100~40,000ml
Applicable shafts	Ø5~Ø36mm
Power (W)	1500W
Operating temperature	0~40℃
Relative humidity (max.)	80% RH
IP Code	IP20
Interface	RS 232/485
Supply voltage (V)	220V/50~60Hz
Dimensions (Excluding dispersing shaft) (W x H x D)	95×163×236 mm

Recommend purchasing the set. The standard set includes: homogenizer, dispersing shaft, stand.
