Flasks Pressure Reaction, Jacketed, with Bottom Outlet

Accessories for Process Scale-Up Systems

Model: 6429-09

Order NO.: 6429-09

224

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

ACCESSORIES OVERVIEW

Description

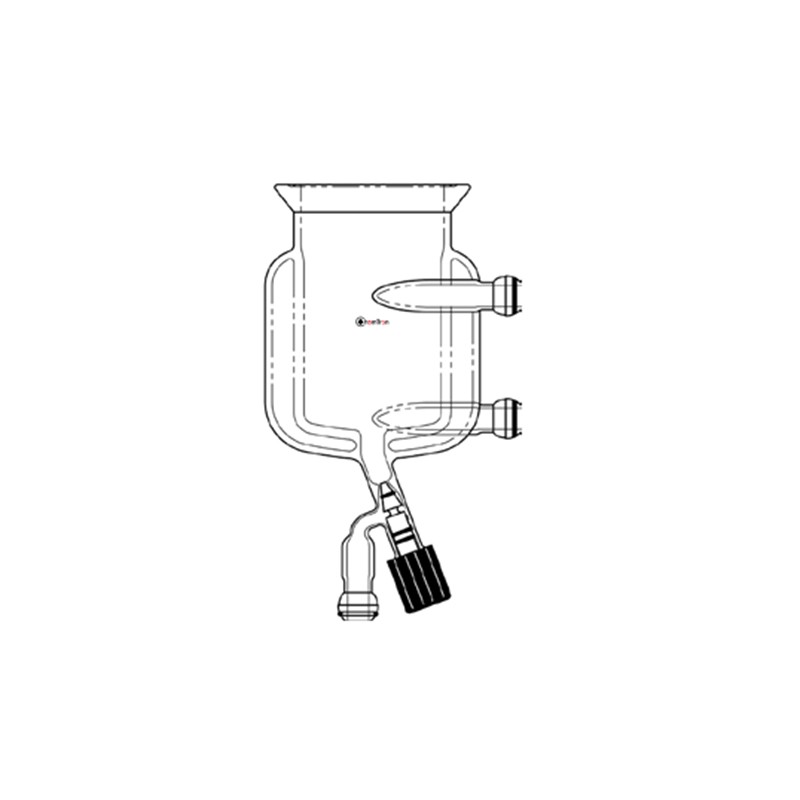

Heavy wall reaction flask with jacket and threaded bottom outlet, part of the two-piece pressure reactor, for use at elevated pressures. Duran® type top flange supplied with a shallow O-Ring groove for use with heads 6433, 6527, 6528 or 6529. Cooling/heating jacket is heat sealed. Inlet/outlet on jacket and bottom valve have size 28/15 O-Ring ball joint connections with size –116 FETFE® O-Rings. Uses 6517 quick-release clamp.
Note: Supplied with CAPFE O-Ring (silicone optional).

Capacity, mL O.D., mm I.D. mm Flange Size, mm Height, mm Bottom Outlet, mm Top O-Ring Order No. Order No.
500 110 60 60 210 0-8 mm 7855-878 6429-09
500 130 96 100 100 0-8 mm 7855-880 6429-14
1000 150 96 100 180 0-8 mm 7855-880 6429-20
2000 180 126 100 230 0-8 mm 7855-880 6429-24
3000 215 151 150 210 0-10 mm 7855-881 6429-28
5000 215 151 150 310 0-10 mm 7855-881 6429-33
