Flow rate (Pressure) of compressed air 360L/min (10bar)

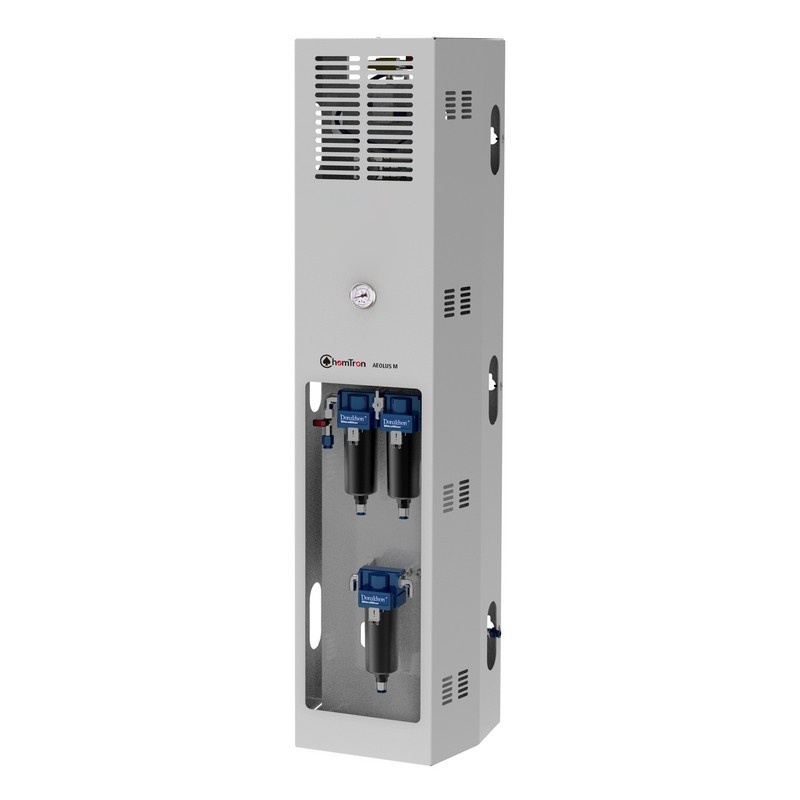

Model: AEOLUS XL
Order NO.:
74
Specific parameters will be adjusted according to product upgrades, without notice.
The AEOLUS series nitrogen generation module provides a clean, safe, economical, and flexible nitrogen supply solution for laboratory or industrial applications.
* With hollow fiber membrane filtration technology to produce
* Design with two standard modular 40 L/min and 80 L/min, which can be quickly combined according to the gas demand of customers and provide gas volume easily, such as 120 L/min, 200 L/min, 400 l/min and so on.
* External compressed air need to be order separately.
* Both connection modes can be switched, suitable for both of high flow compressed air and low flow air compressor with tank
* Can be placed on the table and also be installed on the wall, Saving Laboratory Space
* No vibration, Low noise, to protect the good working environment of the laboratory
Model |
AEOLUS XL |
Flow rate (Purity) of N2 output |
120 L/min@95% 60 L/min@99% |
Flow rate (Pressure) of compressed air |
480 l/min@10bar |
Inlet pressure barg (psig) |
8.5 - 10 bar / 123- 160 psi |
Compressed air requirement |
Dry and clean air, without oil Dew point: <-20 ° C, ISO8573-1 class 1.3.1 |
N2 Max output pressure [bar] |
7 |
N2 Max output pressure [psi] |
100 |
Pressure drop [bar] |
1.5 |
Pressure drop [psi] |
22 |
Ambient temperature [℃ ] |
15~35℃ |
Outlet [mm] |
6mm quick connector or G1/4 Male |
Noise |
58dB |
Compressed air input connector |
OD 10mm or G1/4” |
N2 output connector |
OD 6mm or G1/4” |
Dimensions W x D x H [mm] |
324x265x1204 |
Weight [kg] |
27kg |
