AEOLUS Nitrogen generator

Home > Product > Gas generator (H2 / N2 / Zero air / Purified air/ Compressed air / Industrial gas) > Nitrogen generator > AEOLUS Nitrogen generator >

Nitrogen generator module

Flow rate (Pressure) of compressed air 160L/min (10bar)

Model: AEOLUS M

Order NO.:

167

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

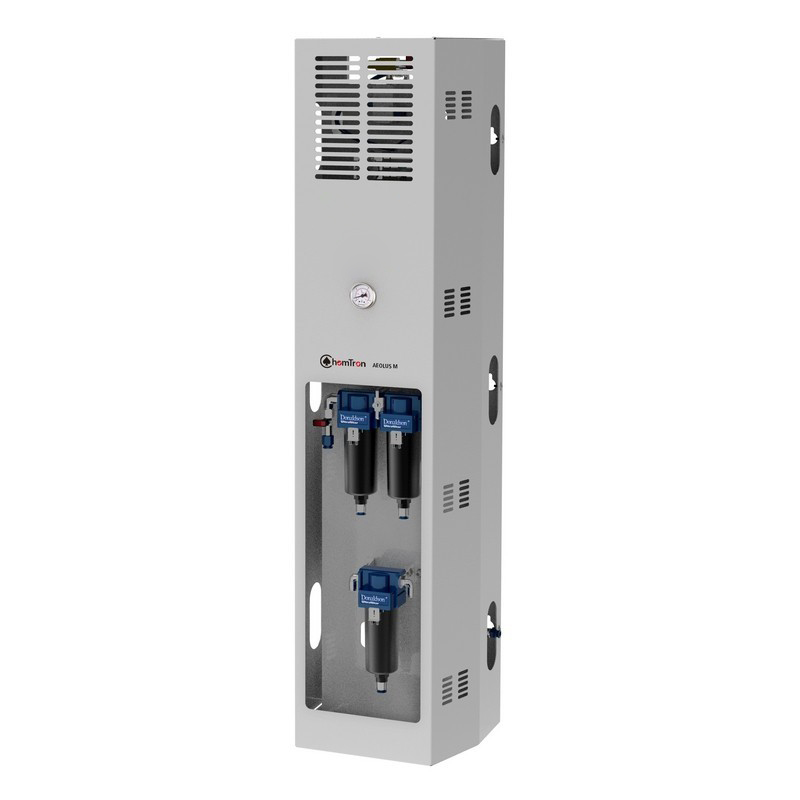

The AEOLUS series nitrogen generation module provides a clean, safe, economical, and flexible nitrogen supply solution for laboratory or industrial applications.

* With hollow fiber membrane filtration technology to produce

* Design with two standard modular 40 L/min and 80 L/min, which can be quickly combined according to the gas demand of customers and provide gas volume easily, such as 120 L/min, 200 L/min, 400 l/min and so on.

* External compressed air need to be order separately.

* Both connection modes can be switched, suitable for both of high flow compressed air and low flow air compressor with tank

* Can be placed on the table and also be installed on the wall, Saving Laboratory Space

* No vibration, Low noise, to protect the good working environment of the laboratory



Model

AEOLUS M

Flow rate (Purity) of N2 output

40L/min (96%)

20L/min (99%)

Flow rate (Pressure) of compressed air

160L/min (10bar)

Pressure of compressed air

8.5~10bar / 123~160psi

Compressed air requirement

Dry and clean air, without oil

Dew point: <-20 °C, ISO8573-1 class 1.3.1

N2 Max output pressure

7bar / 100psi

Pressure drop

1.5bar / 22psi

Ambient temperature (℃)

15℃~35℃

Noise

58Db

Dimensions (W×L×H)mm

324x265x1204

Weight

25kg

Compressed air input connector

OD 10mm or G1/4”

N2 output connector

OD 6mm or G1/4”
