Accessories for Process Scale-Up Systems
Model: 5820-105
Order NO.: 5820-105
65
Specific parameters will be adjusted according to product upgrades, without notice.

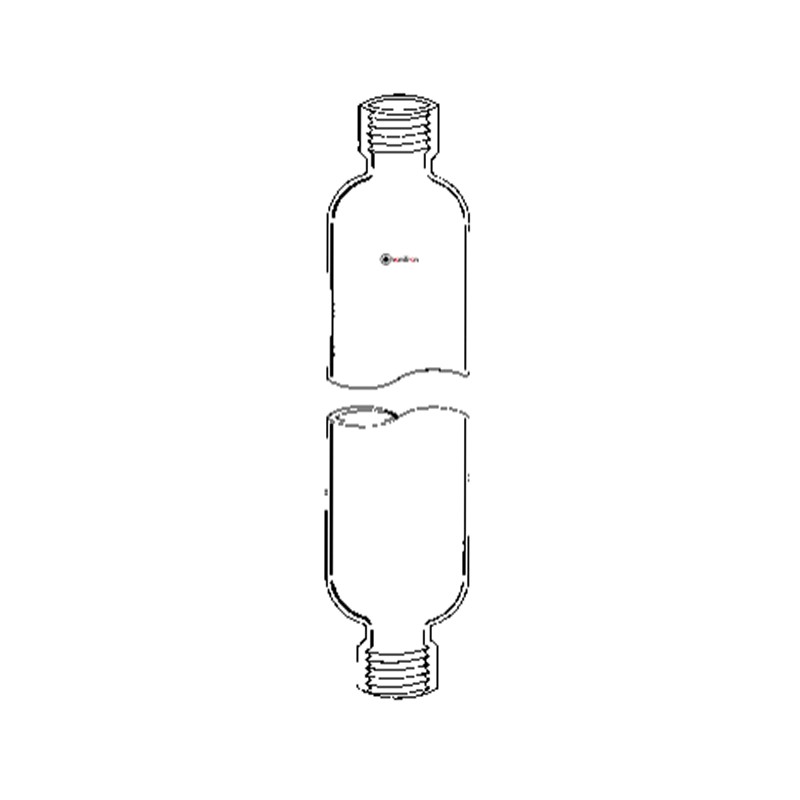

Borosilicate glass columns for liquid chromatography, ion-exchange, or activated carbon work featuring Screw thread connections. Threaded ends are compatible with fittings shown with other chromatography systems listed. Fittings can be used with these columns and offer easy-to-change support screens with a variety of openings never before offered. 50 psi maximum pressure.
| Column I.D., mm | Minimum Effective Length, mm (Inches) | Approx. Capacity, mL | Screw thread Size | Qty. | Order No. |
| 75 | 300 (12) | 1, 320 | 50 | 1 | 5820-105 |
| 75 | 600 (24) | 2, 650 | 50 | 1 | 5820-107 |
| 75 | 1200 (48) | 5, 300 | 50 | 1 | 5820-109 |
| 100 | 1200 (48) | 9, 430 | 50 | 1 | 5820-116 |
| 100 | 1800 (72) | 14, 940 | 50 | 1 | 5820-119 |
| 150 | 600 (24) | 10, 600 | 50 | 1 | 5820-121 |
| 150 | 1200 (48) | 21, 200 | 50 | 1 | 5820-125 |
| 150 | 1800 (72) | 31, 800 | 50 | 1 | 5820-129 |
| 150 | 2400 (96) | 42, 200 | 50 | 1 | 5820-133 |
Note: Columns of larger I.D. and longer than listed above can be fabricated. Also, most sizes can be jacketed. Call or email for details. Support stand for 100 and 150mm columns listed under 12099.
