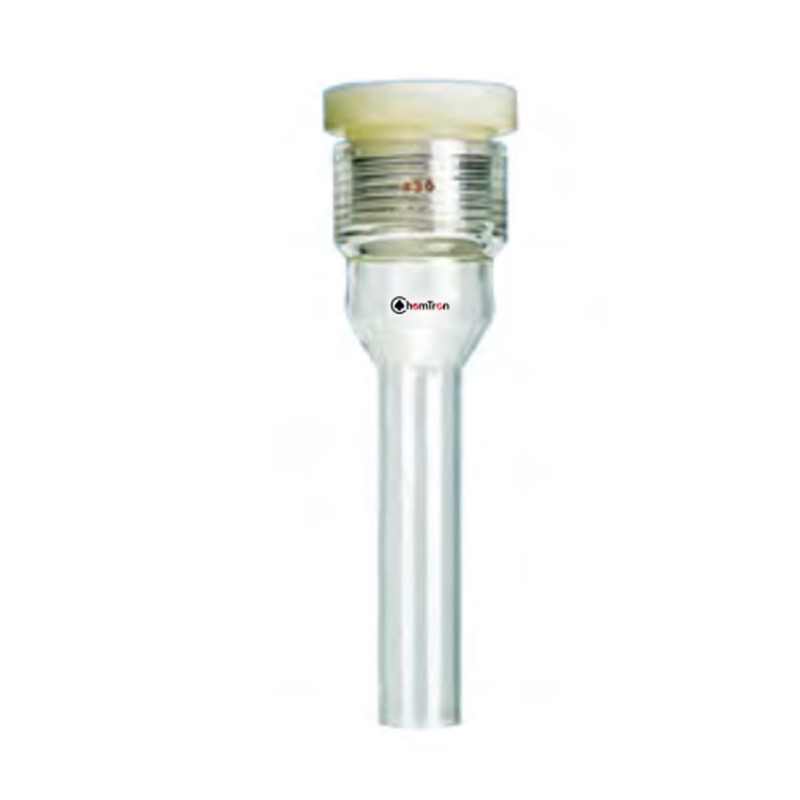

Adapter Slide, Sonochemical

Accessories for Process Scale-Up Systems

Model: 9852-21

Order NO.: 9852-21

68

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

ACCESSORIES OVERVIEW

Description

For use with 1/2-inch ultrasonic horn, 9814-25, and 1/4-inch or 1/2-inch extenders, only. Both slide adapters have a #36 Screw thread at top with a 6-inch extension, either 25 mm O.D. for insertion into a #25 Screw thread or 35 mm O.D. for use in a #36 Screw thread. Secure 1/2-inch horn in adapter with 7506 bushing and o-ring, then slide adapter extension into thread on reaction vessel, again securing with 7506 bushing. Now you have a variable depth adjustment of horn to achieve greater efficiency. Complete item consists of adapter, one nylon bushing with one FETFE o-ring.

Screw thread Size Extender O.D., mm Order No.
Glass Adapter
#36 25mm 9852-21
#36 35mm 9852-25
Bushing w/O-Ring
#36 25mm 7506-12
Complete
#36 25mm 9852-41
#36 35mm 9852-45
