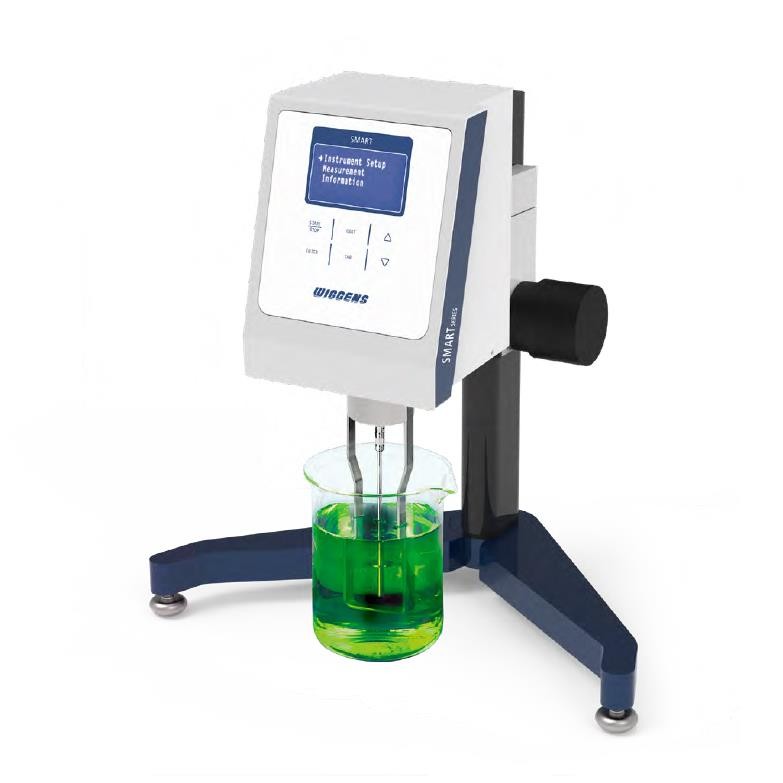

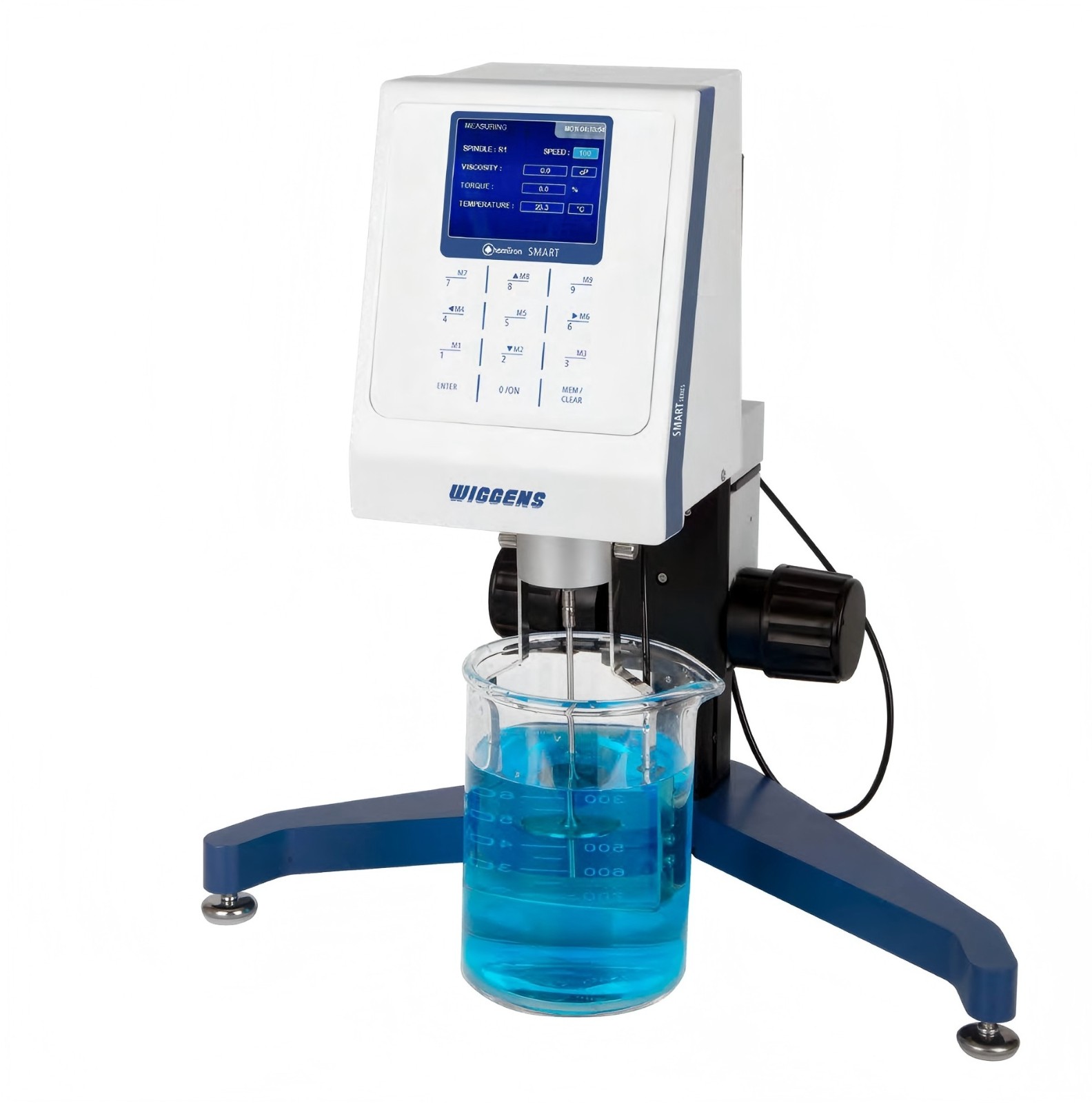

Viscometer

Home > Product > Auto Titrator/Viscometer/Density meter/Electrochemistry Analyzer/Refractometer > Viscometer >

Viscometer

Measuring range:20 to 106,000,000 cP;Speed:0.01 to 200rpm

Model: SMART

Order NO.: VL1001611

284

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Professional and Accurate viscosity results. Customize your measurement.

Touch Keyboard
Latest keyboarding technology, comfortable and easy to handle (6 keys)

Program Features
Time to Torque
Time to Stop

Data Displayed
Selected Speed
Selected Spindle
Viscosity readings (cP or mPa·s or cSt)
Percentage of Full Scale Range (%)
Sample Temperature (℃ or ℉ )
Shear rate (with coaxial spindles) (s-1)
Shear Stress (with coaxial spindles) (N/m2 )
Density (introduced by the user) (g/cm3 )

Viscosity Readings
Absolute viscosity (cP or mPa·s)
Apparent viscosity (cP or mPa·s)
Kinematic viscosity (cSt, mm2 /sec)
(Density introduced by the user)

Graphic Display
Provides huge range of graphical options

Temperature Reading By PT100

USB Interface
Faster transfer data to the USB stick

9 working memories
Set up the unit and get it ready to be used every day choosing the memory you need

Universal Adapter

Main Features
> Touch key board 6 keys.
> Direct readout on a graphic display.
> Data displayed:
   Selected speed...................................................................................................r.p.m.
   Selected spindle......................................................................................................SP
   Viscosity reading...............................................................................cP (mPa·s) or cSt
   Percentage of full scale............................................................................................%
   Sample temperature....................................................................................... ºC or ºF
   Shear Rate (with coaxial spindles) ...................................................................SR (s-1)
   Shear Stress (with coaxial spindles) .............................................................SS (N/m2 )
   Density (introduced by the user) .......................................................................g/cm3
> Viscosity reading: dynamic viscosity  (cP or mPa·s) or kinematics viscosity (cSt).
> Unit converter SI to CGS.
> Program features:
   Time to torque: target torque pre-setting device.
   Time to stop: target time pre-setting device.
   9 working memories.
> AUTO-TEST with sound and visual malfunction alarm.
> AUTO-RANGE function.
> Temperature reading by PT100 (optional).
> User-enabled viscosity and temperature (optional) calibration.
> 7 language options.
> Interface: USB.

Technical File
> Precision: ± 1% of full scale
> Resolution:
   With low viscosity adapter: 0.01
   For lower than 10.000 viscosity cP: 0.1
   For viscosity equal to or above 10.000 cP: 1
> Repeatability: 0.2%
> Thermometer features: Temperature margins: -40° C to + 300.0° C (- 40.0ºF to + 572.0ºF )
> Resolution: 0.1ºC / 0.1722 ºF > Precision: +/- 0.1 ºC
> Type of probe: PT100
> Supplied at 100-240 VAC, 50/60 Hz

Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.

These are the standards our units follow:
> BS: 6075, 5350
> ISO: 2555, 1652
> ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard Delivery
Viscometer head with serial number / Stand, 3 levelling adjustment for stand / Boss head / Standard spindles / Spindle protector / Spindle rack / PT100 probe / Power supply cable / Datalogger software in CD / USB cable / Carrying case / Calibration Certificate / Operating manual
NOTE: All parts (including the viscometer stand) find room in the Carrying case.

Extra Accessories
APM (Small Sample Adapter) / LCP (Low Viscosity Adapters) / Heldal unit (High Viscosity Adapter) / Silicon Standard Oils / Thermostatic Bath / Universal adapter for all accesories such as Brookfield (Optional) / PPR Plugging System (Optional)
NOTE: The material of the accessories including the temperature probe can be changed under customer specification (High Temperature Resistance).

Order Information

Model SMART L SMART R SMART H
Order No. VL1001611 VL1001612 VL1001613
Measuring range 20 to 2,000,000 cP 100 to 13,000,000 cP 200 to 106,000,000 cP
Standard spindles L1,L2,L3,L4 R2,R3,R4,R5,R6,R7 R2,R3,R4,R5,R6,R7
Speed (r.p.m) 0.01 to 200 0.01 to 200 0.01 to 200
Number of speeds 18 18 18
Power supply 100~240V 50/60Hz, 25W 100~240V 50/60Hz, 25W 100~240V 50/60Hz, 25W
Weight 5kg 5kg 5kg
