VR-series Reactors

Home > Product > Stainless steel reactor > VR-series Reactors >

Atmospheric pressure and negative pressure reactor

Max.temperature:200℃;Max.pressure:-1~5bar

Model: VR-1000

Order NO.: VR-1000

1756

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

The VR-reactors enable experiments with 1000ml or 2000ml and negative pressure. In comparison to the other series of reactors, no loss of flexibility or safety has to be made. Easy handling and highest safety and maximal flexibility and individuality.

VR-1000/2000 reactors with a bottom drain valve have three different configurations:

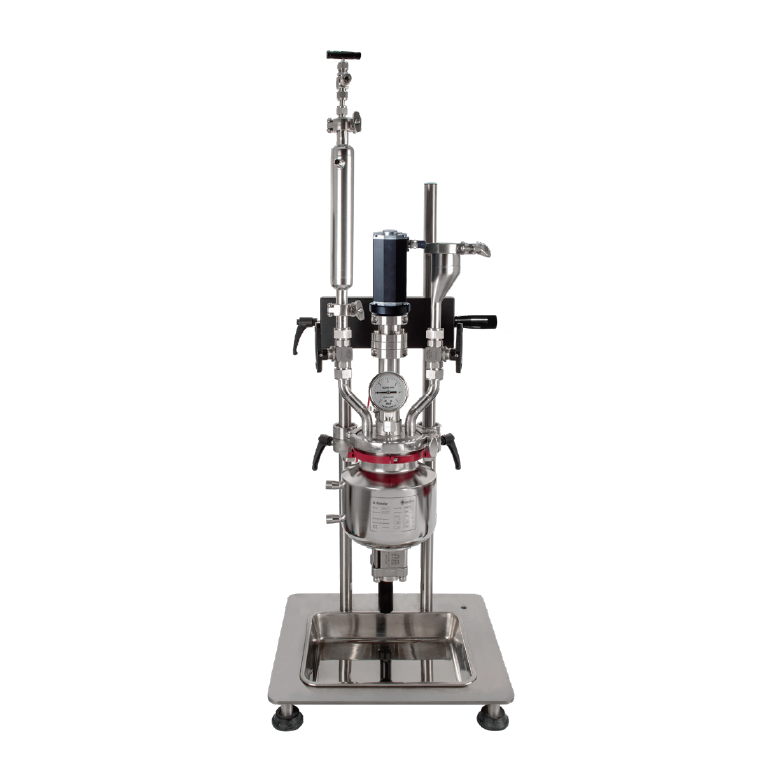

● Basic configration for M1

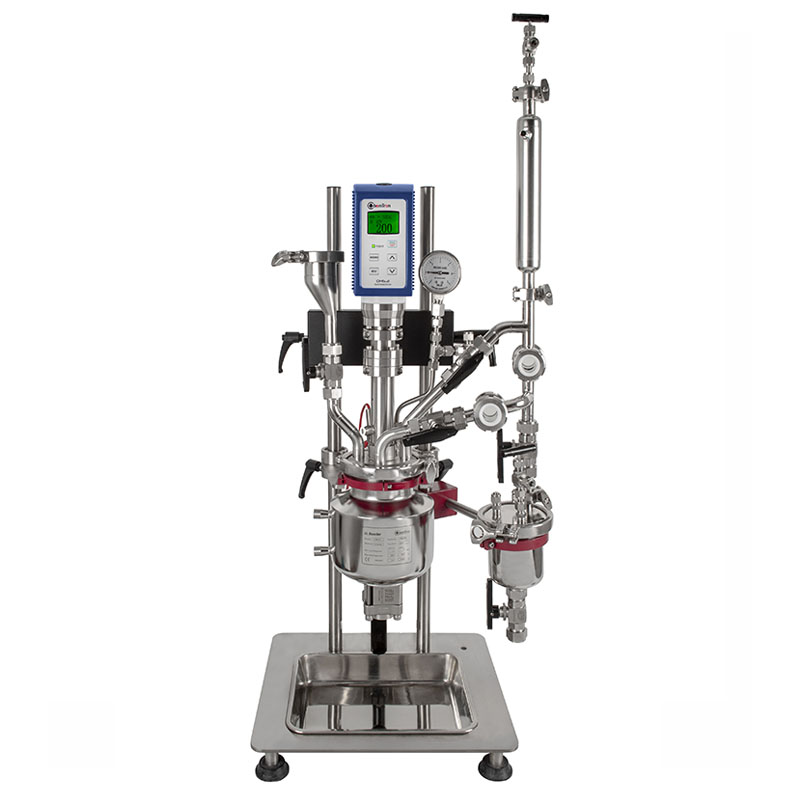

● Basic configuration with distillation unit for M2
● Basic configuration with short-path distillation unit for M3

In total, the VR-1000 and VR-2000 have seven ports, The ports can be used according to customer needs.

Features
● 1000~2000ml / -1~5 bar / 200℃
● With or without jacket, with bottom outlet
● Quick closure chain design
● O-seal ring made of Viton, Other materials are optional
● Heating by electrical or thermostated mantle
● Stirring by overhead stirrer

Technical specification

  VR-1000
General information
Material Stainless Steel 316L
Max.temperature 200℃
Max.pressure -1~5bar
Reactor vessel
Volume (approx.) 1660 ml
Inner diameter Ø 133 mm
Inner height 140 mm
Thickness 5 mm
Bottom drain valve With
Configration
Standard configration Basic configration for M1, basic configuration with distillation unit for M2
Basic configuration with short-path distillation unit for M3
Port (total) 7
Type of connection 8 mm tube connection
Heating systems (optional)
Electrical (Heating jacket) Yes
Via fluid (Double jacket) Yes
Stirring (Magnetic drive)
RV-GL Yes
RV-400 No
