Accessories for Process Scale-Up Systems
Model: 7876-50
Order NO.: 7876-50
251
Specific parameters will be adjusted according to product upgrades, without notice.

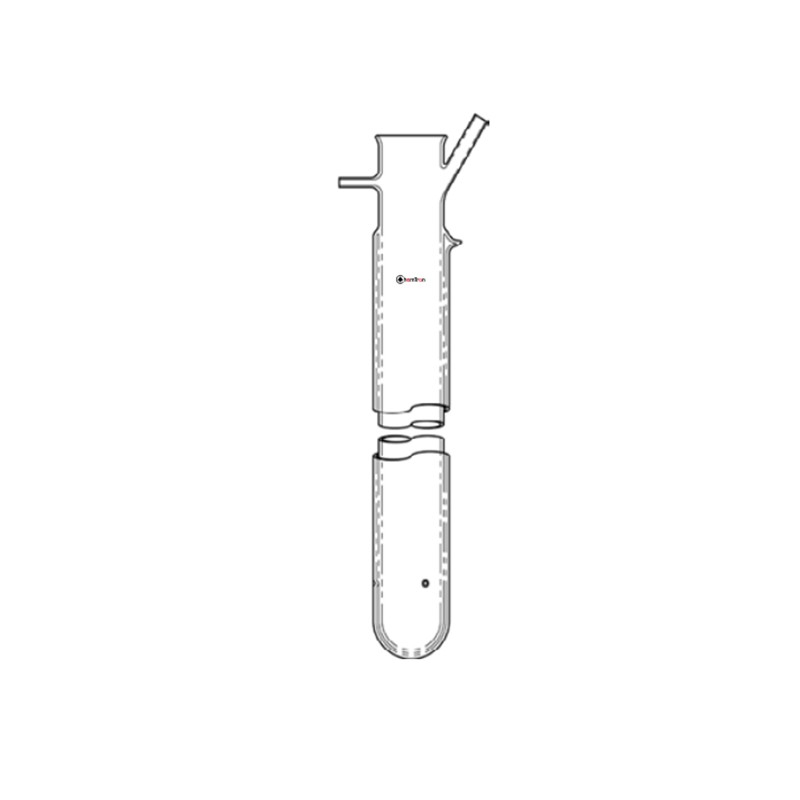

Tripled walled, quartz, immersion well for use in temperatures as low as -78ºC. Same as 7858 immersion well, except, plain-sided, (without standard taper joint), for use with #50 Screw thread bushing and all 7863, 7864, and 7865 vessels. 415mm total jacket length. Will accommodate 7858-85 and -88 inner tubes.
Description | Order No. |
Complete | 7876-50 |
“Complete" consists of all of the following items (may be purchased separately): | |
Outer Well | 7876-10 |
Stopper | 7858-84 |
O-Ring | 7855-740 |
Inlet Tube | 7858-82 |
Inlet Holder | 7858-81 |
#50 Nylon Bushing with FETFE O-Ring | 7506-14 |
Inner Tubes (480mm×30 mm) | |
Quartz | 7858-85 |
Borosilicate Glass | 7858-88 |
