Working Power:160W,Frequency:40Khz

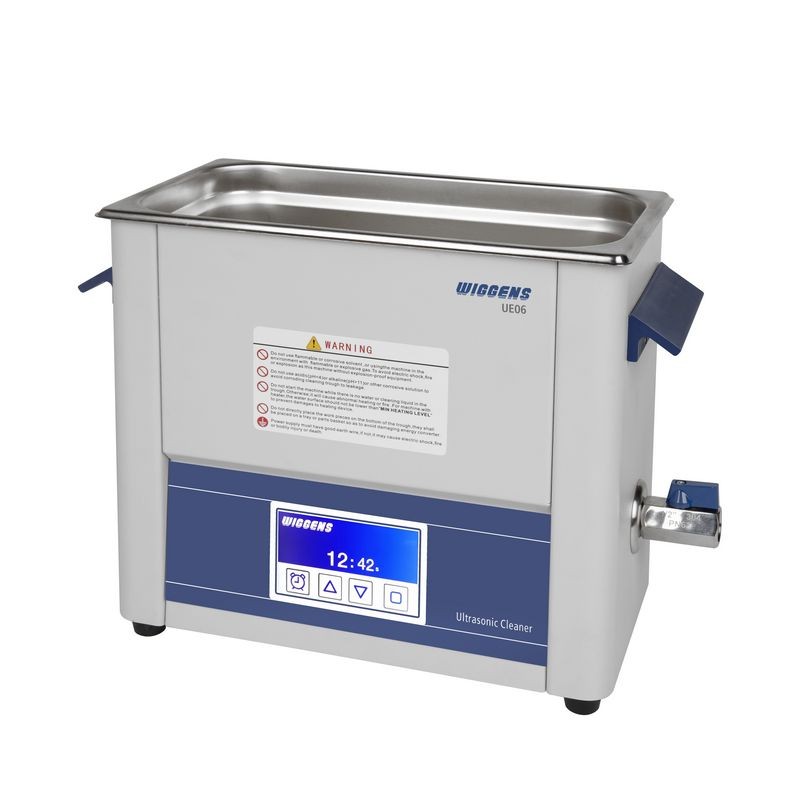

Model: UE06
Order NO.: W3080306
3720
Specific parameters will be adjusted according to product upgrades, without notice.
The cavitation phenomenon consists of formation and growth of millions of microscopic bubbles under a low-pressure stage, produced into the ultrasonic bath due to a high power transducer 37kHz. These bubbles break in all directions and attack every surface in contact with water, erasing dirt, impurities and pollutants when in contact with materials or pieces in the bath. This phenomenon allows cleaning all kinds of materials and products without the need of disassembling, due to all the surfaces being in contact with the liquid. The heating will accelerate this clearing process.
Eco Series
> Wide range of available capacities from 3L up to 22L
> Inner and outer parts made of stainless steel
> Comes with a tray to conveniently place objects to be cleaned
> Features a digital timer with up to 99 min
Pro Series
> Entails all advantages of the Eco series
> LCD touch screen for simple and intuitive operation
> Features a digital timer with up to 199 min
> Heating ability between 20℃ and 80℃
> Comes with a tray and a lid
> Stainless steel 304 tank and powder coated stainless steel, meet the requirements of antiseptic and hygienic lab environment
> Independent degas function
> Automatically save last parameters and recall when the unit is turned back on
> Non-slip feet and flexible surface contact for lower ultrasonic vibration
> Safety handles make the unit portable
> Maintain ultrasonic efficiency at different temperatures
> Frequency overload and thermal protection
Application
> Laboratories: laboratory material, precision instruments, pipettes, sieves, etc.
> Medicine: instrumentation in general, surgical material, etc.
> Odontology: dental prosthesis, instrumentation, etc.
> Optics: instrumentation, opticals, frames, etc.
> Industry: printed circuits, electronic components, etc.
> Jewellery: watches, jewels, etc.
> Automation: Injector clearing.
> Degasification or liquid dissolution
> Compact substances disgregation
Specifications
Eco Series | |
Order No. | W3080306 |
Model | UE06 |
Capacity [L] | 6 |
Internal Size [LxWxH mm] | 300×150×150 |
Overall Size [LxWxH mm] | 330×180×290 |
Working Power [W] | 160 |
Heater Power [W] | -- |
Temp. [℃] | -- |
Frequency [Khz] | 40 |
Timer [min] | 1~99min |
Drainage outlet | With |
