Setting accuracy speed：1rpm,Power:150W
Model: WB6000-D
Order NO.: 100800
4414
Specific parameters will be adjusted according to product upgrades, without notice.

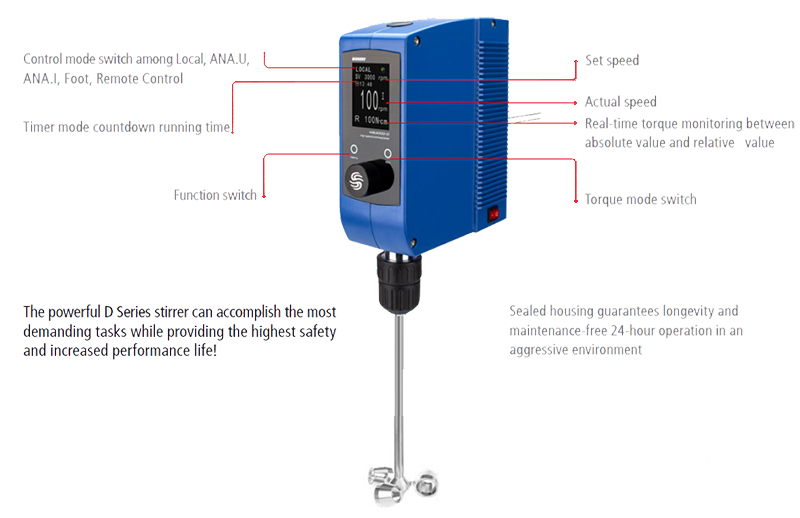

Specially designed for optimum usability and the highest efficiency in the same class with advanced safety features. Offering the best mixing results, even for challenging application that needs high speed and high torque.
> Brushless DC motor
> Totally enclosed and compact metal casing
> Smart and convenient on-touch control
> TFT Display for better image quality and easy navigation
> Bright TFT screen, which can display for monitoring set speed, actual speed and torque
> Transmission can be switched between low speed / high torque, and high speed / low torque
> Easily adjustable spinning chuck > Precise speed adjustment
> Set speed can be maintained when viscosity of liquid changes
> Easy and time saving impeller adjustments
> Digital and analog interface available
> Monitoring and control via PC software
Height adjustment
A through-shaft design allows for adjusting the impeller position to make height adjustment more convenient.
Precise speed adjustment
Speed Range 20-3000rpm, maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
Brushless DC motor
for longer life span, low maintenance and higher efficiency.
TFT Display
for better image quality and easy navigation.
Ease of operation
Smart and convenient on-touch control.
RS232 / RS485
The stirrer comes equipped with an RS 232 and an RS485 interface to control and document all parameters.
Keyless chuck
It allows you to quickly and easily remove the stirring elements without any tools.
Clamping range: 0.5-10mm.
High Torque / High Speed
Offering the best mixing results, even for challenging applications.
The powerful D Series stirrer can accomplish the most demanding tasks while providing the highest safety and increased performance life!
Sealed housing guarantees longevity and maintenance-free 24-hour operation in an aggressive environment.
Specifications
Please note that other overhead stirrer models are available on request, please contact Wiggens for further information.
| Model | WB6000-D |
| Order No. | 100800 |
| Speed range [rpm] 1) | 60~1200 (I) |
| 1201~6000 (II) | |
| Setting accuracy speed [rpm] | 1 |
| Deviation of speed measurement n > 300rpm | ±3 % |
| Speed Display | TFT display |
| Clockwise or counterclockwise of stirring | Yes |
| Speed setting | Touch key and turning knob |
| Power [W] | 150 |
| Stirring quantity max [L / H2O] | 100 |
| Motor principle | Brushless DC motor |
| Torque max. at stirring shaft [N-cm] 2) | 170(I) / 34(II) |
| Stirring element fastening | Keyless chuck, easy to install and replace the shaft. |
| Chuck range diameter [mm] | 0.5~10 |
| Hollow shaft, inner diameter [mm] | 10.2 |
| Fastening on stand | Extension arm |
| Extension arm diameter [mm] | 13 |
| Extension arm length [mm] | 124 |
| Housing material | Cast aluminum coating |
| Interface RS-232/485 and analog connection | Yes |
| Dimensions (W x H x D) | 200 x 95 x 230 |
| Weight [kg] | 5 |
| Power supply | 100~240VAC,50/60Hz |
1) Two grades of stirring speed are for this series. The low-speed has more torque, suitable for chemical reaction system. And the high-speed is suitable for sample pretreatment. According to the set speed, it can be switched automatically between them.
2) The two speed ranges correspond to different maximum torque.
