Infrared Hot Plate / Stirrer

Max. Hot Plate Temperature: 550℃,Speed Range 50-1500rpm,Temperature Stability ±1℃

Model: SLR

Order NO.: 285416373

4659

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

In addition to fast or temperature controlled heating, a lot of applications also require liquids to be stirred. Using our laboratory stirrer SLR with heating, the process of mixing liquids can be selected from careful to intense, and the device can also be used for speedy heating up or controlled temperature adaptation.

Features
*  Corrosion-resistant ceramic glass top plate
*  Excellent transmittance of the infrared light
*  The top plate can resist up to 700℃ thermal shocks
*  Hermetically sealed, corrosion-resistant, solid casing
* Fast heating and excellent temperature stability
*  External control by the connection of a Pt100 temperature sensor
*  Large LCD display for setting and monitoring of temperature and speed
*  A high-temperature indicator warns the user and prevents burning injuries
*  Compressed air connector optionally available for the use in aggressive environments

Specifications

odel

SLR

Display Mode

LCD

Heating Capacity (kW)

1.8

Max. Hot Plate Temperature ( )

550

Solvent Temperature (Pt100 sensor)( )

40-300

Temperature Stability (Pt100sensor)( )

±1

Min. Time to Boiling Point for 1L H2O (min)

7(1L H2O)

Speed Range (rpm)

50~1500

Setting accuracy (rpm)

10

Digital set/actual rpm display

yes

Top Plate Area (W x L in mm)

280*280

Heating Zone (mm)

Ø190

Mixing Capacity (L) H2O

30

Top Plate Material

Glass Ceramic

Housing material

Die-cast, coated with anti-corrosion material

Environmental conditions

-5 ~+40℃;Admissible air humidity 85%

Protection type / protection class

IP20, Level 1

Temperature sensor connector

Pt100

Interface

RS-232

Dimensions (L x W x H in mm)

450X282X115

max. load (kg)

25

Weight (kg)

4.1

Mains connection

230V/50Hz

Order No.

285416373

500mL water measured at 80℃

Accessories

  • 1.110.6
    Cylindrical Stir Bars

    Cylindrical stir bars have a smooth and round profile. They can be used for a wide variety of applications and are the general choice for basic stirring processes.

  • 1.210.6
    Plain Stir Bars

    Similar action to cylindrical but gives more turbulence at low speed.

  • 1.513
    Colored Octahedral Stir Bars

    Colored octahedral stir bars should be used when the identification of the stirred material is of high importance

  • 1.802
    Micro Stir Bars

    Micro stir bars should be used for small and very small containers

  • 1.802
    Colored Micro Stir Bars

    Colored micro stir bars should be used when the identification of the stirred material is of high importance and when the container is small or very small

  • 1.3319
    Octaoval Stir Bars

    Octaoval stir bars are effective stir bars with characteristics similar to oval and Pivot type stir bars

  • 1.513.3
    Octahedral Stir Bars

    Octahedral stir bars employ similar characteristics as Pivot ring stir bars but show a higher turbulence at low stirring speed

  • 1.610
    Oval Stir Bars

    Oval stir bars are preferentially used in flasks with round bottoms

  • 1.1712

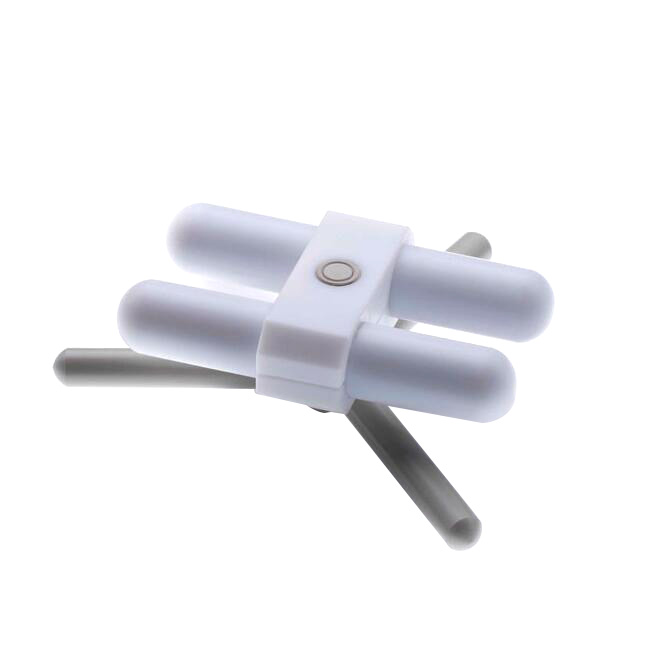

    Cylindrical Stir Bars With a Removable Pivot Ring

    Removable ring stir bars employ characteristics similar to cylindrical and pivot ring stir bars

  • 1.1910
    Tapered Stir Bar

    Tapered stir bars have very effective stirring characteristics which are similar to those of oval and Pivot ring type

  • 1.1335

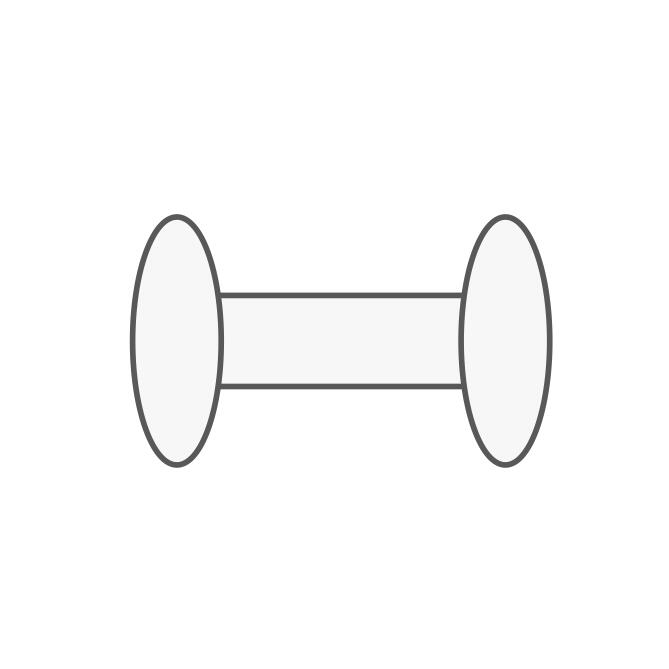

    Double Ended Stir Bar

    Double ended stir bars use enlarged areas on both sides for effective and stable stirring

  • 1.412
    Triangular Stir Bars

    Triangular stir bars are effective for dissolving solids and mixing sediments because of their scraper-like characteristics

  • 1.1812
    Ribbed Triangular Stir Bars

    Ribbed triangular stir bars have excellent stirring characteristics at all speeds and can be used on uneven surfaces

  • 1.1609
    Tube Stirrer Magnets

    Tube Stirrer Magnets is suitable for 10mm diameter standard colorimetric ware

  • 1.2401

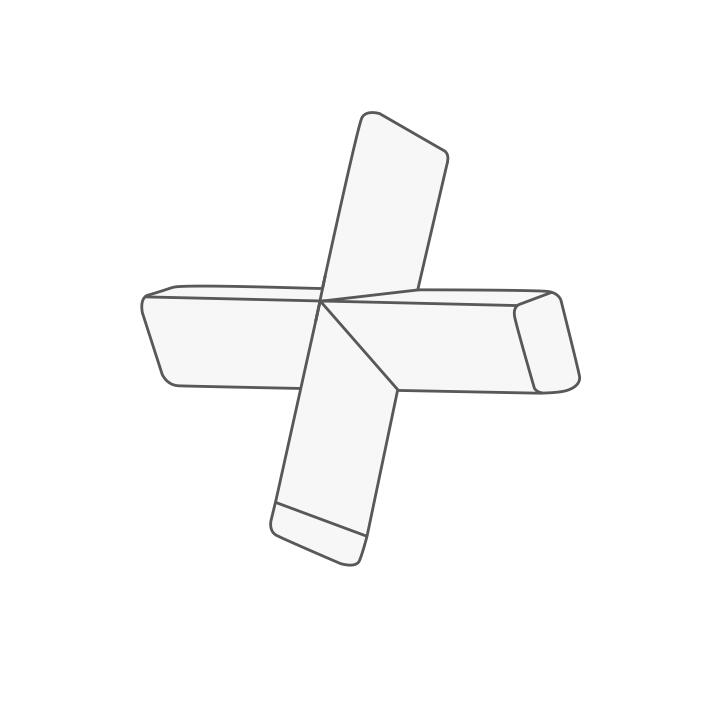

    Cross-Shaped Stir Bars

    Cross-shaped stir bars are very stable at all speeds and can be used for general purpose stirring

  • 1.1110
    Crosshead Stirrer Magnets (Double Sided)

    Crosshead stirrer magnets are designed for the use in tube-shaped containers. There are single sided and double sided crosshead stirrer magnets available

  • 1.1110.1
    Crosshead Stirrer Magnets (Single Sided)

    Crosshead stirrer magnets are designed for the use in tube-shaped containers. There are single sided and double sided crosshead stirrer magnets available

  • 1.2201.1
    Test Tube Wings

    Test tube wing stir bars are effective for round bottom test tubes, centrifuge tubes, and sample tubes

  • 1.2301
    Hub Stirrer Magnets

    Hub Stirrer Magnets can guarantee the stable mixing ability, especially suitable for low speed stirring

  • 1.1512
    Spherical Stirrer Magnets

    Spherical Stirrer magnets are preferably used in tubes and for eccentric stirring

  • 1.1206
    Glass Encased Stir Bars

    Glass encased stir bars can be used for the stirring of high temperature liquids (up to 275°C). They are nonreactive, leak proof, and nonabsorbent

  • 001.0120
    Extra Large Stir Bars

    Extra large stir bars can used for mixing a large amount of solution, or in large capacity container sample mixing

  • 1.709
    Disc-Shaped Stirrer Magnets

    Disc-Shaped Stirrer Magnets is suitable for the test tube or other tubular container sample mixing

  • ASTEROID 25/40/70
    High-effective stirring bar

    New developed, high-effective stirring bar, ideal for viscous media, stirring over wide distances or for disadvantageous vessel bottoms.

  • SATELLITE 70 / 140
    High-effective stirring bar

    Extremely strong, abrasion-free and wear-free magnetic double stirring bar

  • PT100-01
    PT100 Temperature Sensor

    PT100 Temperature Sensor

  • PT100-05
    Holder for Temperature Sensor

    Holder for Temperature Sensor
