CSC System

Ultimate vacuum range: 2 – 30 mbar, Flow rate range: 10 – 95 L/min

Model:

Order NO.:

302

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

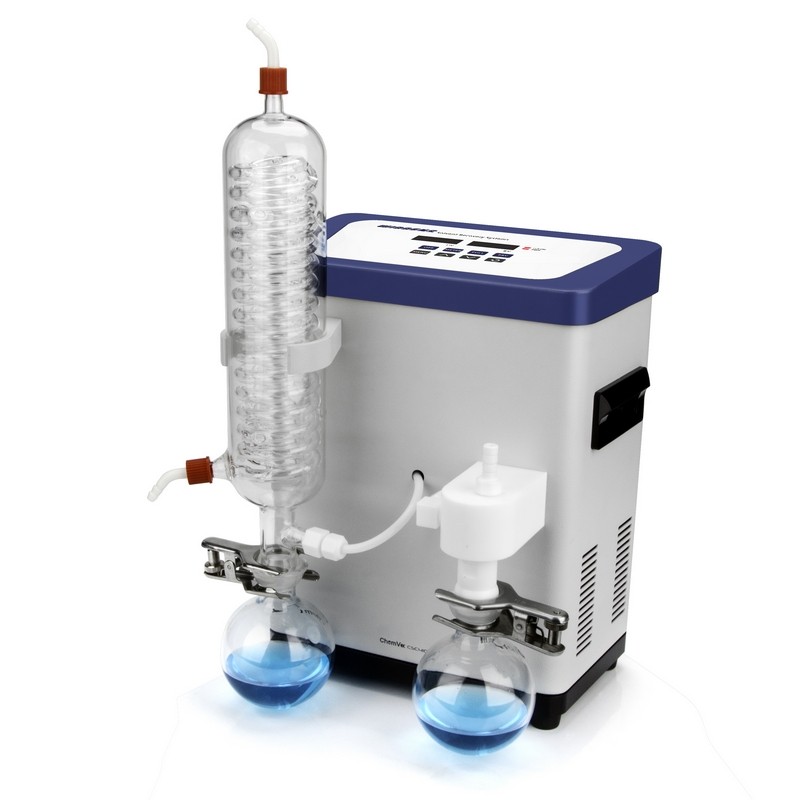

The inlet of the CSH System is connected to a segregation bottle, whereas the outlet is connected to a condenser, which is used to condensate and recover the solvent. In addition, the system contains a vacuum controller to set, display, and control the vacuum. Fully automated vacuum generation system comprising Chemical resistant diaphragm vacuum pump, base plate, high performance condenser, segregation bettle, Vacuum control device, valves and control unit.

* Sealed system to enable a good distillation environment
* Precise control of the evaporation process
* Compact and environmental friendly design
* Low noise
* Buffer bottle prevents particles from damaging the pump
* Direct electric connection
* Ultimate vacuum range: 2 – 30 mbar
* Flow rate range: 10 – 95 L/min

Model

CSC410

CSC510

CSC610

Build in Pump Type

C410

C510

C610

Power (W)

95

245

245

Ultimate Vacuum (mbar)

13

8

2

Max. Flow Rate (l/min)

25

34

34

Outlet Size (outer diameter in mm)

10

10

10

Weight (kg)

16

19.3

20.1

Order No.

900522

900523

900524

The system contains
Chemical resistant diaphragm pump, Vacuum controller, Separator, Condenser, Set of tubing,Casing.
