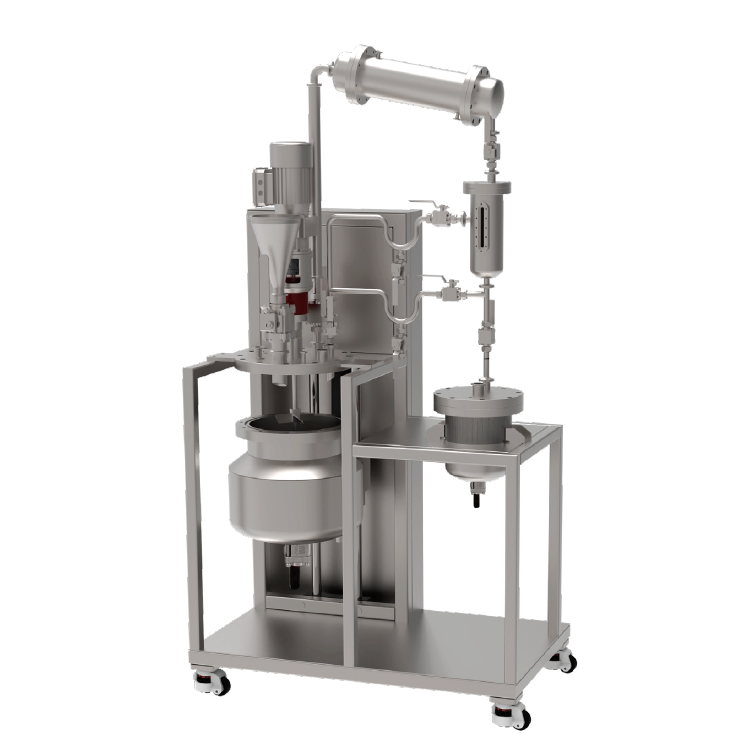

VR-5000 Reactor

The requirements of our customers for the reaction vessels are as varied as the respective processes which arecarried out in them.

Model: VR-5000

Order NO.:

472

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

The requirements of our customers for the reaction vessels are as varied as the respective processes which arecarried out in them.
In recent decades,we have developed a modular system with standardised connection components,in order to economically implement individual solutions.This greatly simplifies the design and construction of our custom-made products.

Specification

Model

VR-5000

Performance and Material

Material

316L S.S.

Max. Temperature

300℃

Max. Pressure

≤5bar

Jacketed vessel

Volume

5000ml

Flange

DN153

Inner Dia.

147mm

Inner Height

280mm

O-ring

Material

PTFE( Viton, FFKM for optional)

Size

153mm

Lids

Flange

DN153

Center Ports

M38X1.5

Other ports

1/4" and 1/2" NPT

Heating unit ( Optional)

JULABO unit

Yes

Stir

Type of sealling

Double mechanical seal

Motor

Overhead stirring motor

Speed

20~1800rpm( Other model for optional )

Frame

Type

SS Frame

Size

600*360/700mm( L*W*H )

Liquid receiving tray

Stainless steel
